International Harvester 454 Tests


International Harvester 454 tractor photo
1970 - 1973
Utility tractor
Tractor Tests
NTTL 1096: gasoline 8-speed 2WD
NTTL 1097: diesel 8-speed 2WD
Nebraska Tractor Test 1096

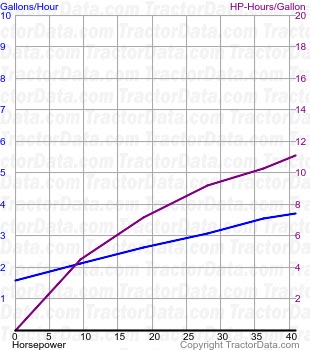

454 fuel use from test 1096
Nebraska Tractor Test 1096
Gasoline 8-speed 2WD
April 21 - May 11, 1972
Link: Nebraska Tractor Test 1096 file
PTO performance
Power at rated engine speed40.86 hp
30.5 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power33.53 hp
25.0 kW
Fuel use3.6 gal/hour
13.6 l/hour
Gear 3-Low used for power test.
Max pull5329 lbs
2417 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 1097

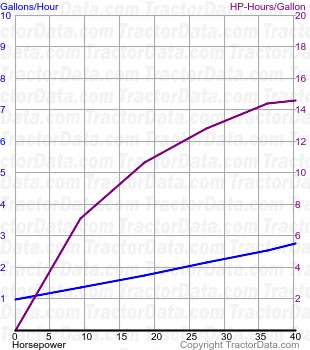

454 fuel use from test 1097
Nebraska Tractor Test 1097
Diesel 8-speed 2WD
April 22 - May 12, 1972
Link: Nebraska Tractor Test 1097 file
PTO performance
Power at rated engine speed40.47 hp
30.2 kW
Fuel use2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power35.35 hp
26.4 kW
Fuel use2.7 gal/hour
10.2 l/hour
Gear 3-Low used for power test.
Max pull5583 lbs
2532 kg
Gear 1-Low used for pull test.
