    Kubota BX2350

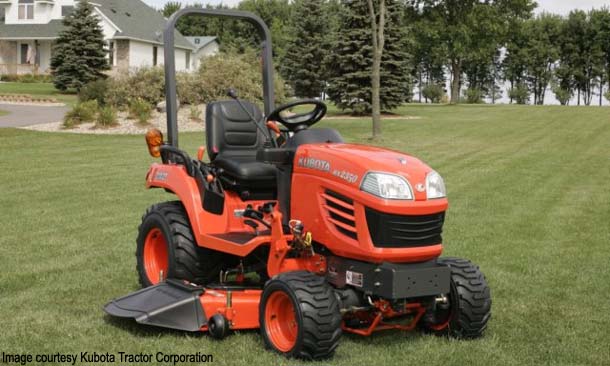

    Kubota BX2350 tractor photo
    Production years:2006 -
    Tractor type:Farm/Agricultural tractor
    Smaller:Kubota BX1850




    General tractor information:

    Manufacturer:Kubota
    Model:BX2350
    Type:Farm/Agricultural tractor
    Total built:-unknown-
    Factory:-unknown-
    Original price:$9,817 (2009)


    Tractor power:

    Engine:23 hp [17.2 kW]
    PTO (rated):17.7 hp [13.2 kW]
    Kubota BX2350 tractor photo


    Engine:

    Manufacturer:Kubota
    Model:D902
    Fuel:diesel
    Aspiration:natural
    Cylinders:3
    Bore/Stroke:2.8x2.9 inches [71 x 74 mm]
    Displacement:54.8 ci [0.9 L]
    Horsepower:23 hp [17.2 kW]
    Compression:-unknown-
    Rated RPMs:3200
    Cooling:liquid
    Torque:-unknown-
    Firing order:-unknown-
    Oil capacity:3.3 qts [3.1 L]


    Transmission:

    Type:hydrostatic
    Forward:infinite (2-range)
    Reverse:infinite (2-range)
    Capacity:12.4 qts [11.7 L]
    Speeds:
    Gear rpm
    Fwd-low3.7mph [6.0kph]
    Fwd-high8.1mph [13.0kph]
    Rev-low2.8mph [4.5kph]
    Rev-high6.2mph [10.0kph]



    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:hydrostatic power
    Brakes:wet disc
    Cab:ROPS. Optional canopy.


    Capacity:

    Fuel:6.6 gal [24 L]


    3-Point Hitch:

    Rear Hitch Category:I
    Rear lift:-unknown-
    Rear lift (at ends):992 lbs [449 kg]
    Rear lift (at 24"/610mm):670 lbs [303 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear speed (RPM):540
    Mid PTO:independent
    Mid speed (RPM):2500


    Hydraulics:

    Type:open center
    Capacity:3.1 gal [11 L]
    Total flow:6.3 gpm [23.8 lpm]
    Valve flow:-unknown-
    Pressure:-unknown-
    Valves:-unknown-


    Tires:

    Ag front:18x8.5-10
    Ag rear:26x12-12
    Turf front:18x8.5-10
    Turf rear:26x12-12


    Dimensions:

    Weight:1,322 lbs [599 kg]
    Wheelbase:55.1 inches [139 cm]
    Length:95.5 inches [242 cm]
    Width:44.5 inches [113 cm]
    Height:70.4 inches [178 cm]
    Ground clearance:8.7 inches [22 cm]
    4WD turn circle:7.5 feet [2.3 m]


    Electrical:

    System:alternator
    Amps:40


    Battery:

    Number:1
    Cold-cranking amps:535
    Volts:12
