John Deere 7330
|
|
| | Production: |
| Manufacturer: | John Deere
|
| Series: | 7030 Small-Frame
|
| Factory: | Waterloo, Iowa, USA
|
| Original price: | -unknown- |
| | Capacity: |
| Fuel: | 66 gal [249.8 L]
|
| Hydraulic system: | 13.7 gal [51.9 L]
15.9 gal [60.2 L] (with IVT)
|
| | |
| Rear Type: | IIIN/II
|
| Rear lift (at 24"/610mm): | 5,915 lbs [2683 kg]
8,800 lbs [3991 kg] (7130 Premium)
9,950 lbs [4513 kg] (Premium optional)
|
| | |
| Rear PTO: | independent
|
| Rear RPMs: | 540/1000
540/540E/1000 (optional)
|
| | 7330 Serial Numbers: |
| Location: | Right side of main frame above front axle
|
- Serial numbers unknown -
|
|
| | John Deere 7330 Power: |
| Engine: | 150 hp [111.9 kW]
|
| PTO (claimed): | 125 hp [93.2 kW]
|
| | Mechanical: |
| Chassis: | 4x2 2WD
4x4 MFWD 4WD optional
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
|
|
| | Hydraulics: |
| Type: | constand flow load sensing
closed-center pressure and flow compensated (Premium)
|
| Capacity: | 13.7 gal [51.9 L]
15.9 gal [60.2 L] (with IVT)
|
| Pressure: | 2900 psi [200.0 bar]
|
| Valves: | 2 to 4
|
| Valve flow: | 17.5 gpm [66.2 lpm]
29 gpm [109.8 lpm] (optional, standard in Premium)
|
| | Electrical: |
| Ground: | -unknown- |
|
| |
 | | John Deere 7330 tractor photo |
| |

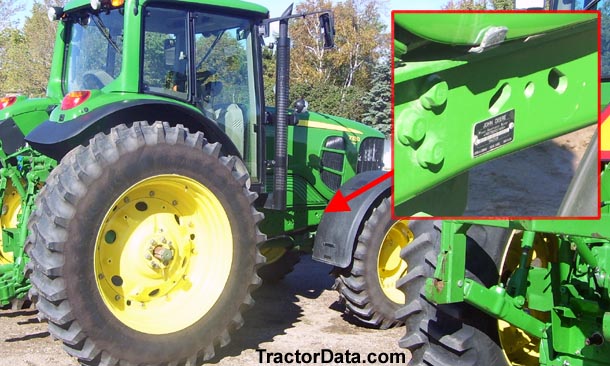

 | | John Deere 7330 serial number location |
|
| | Dimensions: |
| Weight: | 10,800 lbs [4898 kg] (2WD shipping)
12,965 lbs [5880 kg] (4WD shipping)
|
| Wheelbase: | 104.3 inches [264 cm]
|
| Length: | -unknown- |
| Width: | -unknown- |
| Height: | -unknown- |
| Ground clearance: | -unknown- |
| | John Deere 7330 Tires: |
| Ag front: | -unknown- |
| Ag rear: | -unknown- |
| | Engine: |
| Manufacturer: | John Deere
|
| Model: | 6068HRW74
|
| Fuel: | diesel
|
| Aspiration: | turbocharged intercooled
|
| Cylinders: | 6
|
| Valves: | 12
|
| Bore/Stroke: | 4.19x5.00 inches [106 x 127 mm]
|
| Displacement: | 414.4 ci [6.8 L]
|
| Horsepower: | 150 hp [111.9 kW]
|
| Cooling: | liquid
|
| Coolant: | 29.6 qts [28.0 L]
|
| Air cleaner: | dual paper elements
|
| Compression: | 17.0:1
|
| Rated RPMs: | 2100
|
| Torque: | 507 lb-ft [687.5 Nm]
|
| Torque RPMs: | 1500
|
| Firing order: | 1-5-3-6-2-4
|
| Starter type: | -unknown- |
| Oil capacity: | 20.8 qts [19.7 L]
|
| Intake valve clearance: | 0.014
|
| Exhaust valve clearance: | 0.018
|
| | Engine: |
| Manufacturer: | John Deere
|
| Model: | 6068HRW75
|
| Fuel: | diesel
|
| Aspiration: | turbocharged intercooled
|
| Cylinders: | 6
|
| Valves: | 24
|
| Bore/Stroke: | 4.19x5.00 inches [106 x 127 mm]
|
| Displacement: | 414.4 ci [6.8 L]
|
| Horsepower: | 150 hp [111.9 kW]
|
| Cooling: | liquid
|
| Coolant: | 29.6 qts [28.0 L]
|
| Air cleaner: | dual paper elements
|
| Compression: | 17.0:1
|
| Rated RPMs: | 2100
|
| Torque: | 517 lb-ft [701.1 Nm]
|
| Torque RPMs: | 1600
|
| Firing order: | 1-5-3-6-2-4
|
| Starter type: | -unknown- |
| Oil capacity: | 20.8 qts [19.7 L]
|
| Intake valve clearance: | 0.014
|
| Exhaust valve clearance: | 0.018
|
| | Transmission: |
| Transmission: | PowrQuad
|
| Type: | partial power shift
|
| Forward: | 16
|
| Reverse: | 16
|
| Oil capacity: | -unknown- |
| | Transmission: |
| Transmission: | PowrQuad
|
| Type: | partial power shift
|
| Forward: | 24
|
| Reverse: | 24
|
| Oil capacity: | -unknown- |
| Comments: | Six synchronized ranges with four power shift gears in each range.
|
|
|
| | Transmission: |
| Transmission: | PowrQuad Plus
|
| Type: | partial power shift
|
| Forward: | 16
|
| Reverse: | 16
|
| Oil capacity: | -unknown- |
| Comments: | Six ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
|
| | Transmission: |
| Transmission: | PowrQuad Plus
|
| Type: | partial power shift
|
| Forward: | 24
|
| Reverse: | 24
|
| Oil capacity: | -unknown- |
| Comments: | Six ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
|
| | Transmission: |
| Transmission: | AutoQuad Plus
|
| Type: | partial power shift
|
| Forward: | 24
|
| Reverse: | 24
|
| Oil capacity: | -unknown- |
| Comments: | Six ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.
|
| | Transmission: |
| Transmission: | IVT
|
| Type: | infinitely variable transmission
|
| Forward: | infinite
|
| Reverse: | infinite
|
| Oil capacity: | -unknown- |
