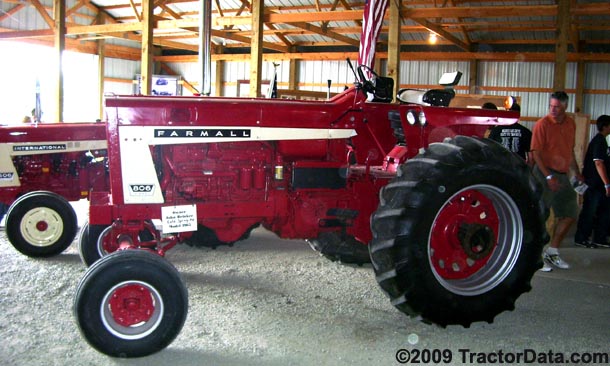

Farmall 806
|
 |
| Note: the Farmall model 806 is the same as the International Harvester 806. The following data is from the 806 listing. |
| Production years: | 1963 - 1967
|
| Tractor type: | Farm/Agricultural tractor
|
|
| | General tractor information: |
| Manufacturer: | Farmall
|
| Model: | 806
|
| Type: | Farm/Agricultural tractor
|
| Total built: | 8,052 (IH/wheatland)
42,957 (Farmall/row-crop)
|
| Factory: | -unknown- |
| Original price: | $6,800 (1967)
|
| | Tractor power: |
| Drawbar (rated): | 86.6 hp [64.6 kW]
|
| Drawbar (max): | 84.7 hp [63.2 kW]
|
| PTO (rated): | 94.93 hp [70.8 kW]
|
|
 |
| | Engine: |
| Manufacturer: | International Harvester
|
| Model: | D361
|
| Fuel: | diesel
|
| Cylinders: | 6
|
| Bore/Stroke: | 4.125x4.50 inches [105 x 114 mm]
|
| Displacement: | 361 ci [5.9 L]
|
| Compression: | -unknown- |
| Rated RPMs: | 2400
|
| Cooling: | liquid
|
| Coolant: | 24 qts [22.7 L]
|
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Engine: |
| Manufacturer: | Interntional Harvester
|
| Model: | C301
|
| Fuel: | gasoline
|
| Cylinders: | 6
|
| Bore/Stroke: | 3.8125x4.39 inches [97 x 112 mm]
|
| Displacement: | 301 ci [4.9 L]
|
| Compression: | 7.7:1
|
| Rated RPMs: | 2400
|
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Engine: |
| Manufacturer: | International Harvester
|
| Fuel: | LP gas
|
| Cylinders: | 6
|
| Bore/Stroke: | 3.8125x4.39 inches [97 x 112 mm]
|
| Displacement: | 301 ci [4.9 L]
|
| Compression: | 8.71:1
|
| Rated RPMs: | 2400
|
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Transmission: |
| Type: | sliding gear
|
| Forward: | 8
|
| Reverse: | 4
|
| | Transmission: |
| Type: | Torque Amplifier
|
| Forward: | 16
|
| Reverse: | 8
|
|
|
|
| | Mechanical: |
| Chassis: | 4x2 2WD
4x4 MFWD 4WD optional
|
| Steering: | -unknown- |
| Brakes: | -unknown- |
| | Capacity: |
| Fuel: | 42 gal [158 L]
|
| | 3-Point Hitch: |
| Rear Hitch Category: | II
|
| Rear lift: | -unknown- |
| | |
| Rear PTO: | independent
|
| Rear speed (RPM): | 540, 1000
|
| | Hydraulics: |
| Type: | open
|
| Capacity: | -unknown- |
| Total flow: | -unknown- |
| Valve flow: | 12 gpm [45.4 lpm]
|
| Pressure: | -unknown- |
| Valves: | -unknown- |
| | Tires: |
| Ag front: | 7.50-16
|
| Ag rear: | 16.9-38
|
| | Dimensions: |
| Weight: | 9,290 lbs [4213 kg]
|
| Wheelbase: | 101 inches [256 cm]
|
| Length: | -unknown- |
| Width: | -unknown- |
| Height: | -unknown- |
| Ground clearance: | -unknown- |
| | Electrical: |
| | Nebraska Tractor Test 857: |
| Test Date: | October 1963
|
| Engine: | diesel
|
| PTO (rated eng speed): | 94.9 hp [70.8 kW]
|
| PTO fuel use (rated): | 14.96 hh/g [2.9 kWh/l]
|
| Drawbar (max): | 84.7 hp [63.2 kW]
|
| | Nebraska Tractor Test 859: |
| Test Date: | October 1963
|
| Engine: | gasoline
|
| PTO (rated eng speed): | 93.3 hp [69.6 kW]
|
| PTO fuel use (rated): | 12.6 hh/g [2.5 kWh/l]
|
| Drawbar (max): | 80.7 hp [60.2 kW]
|
| | Nebraska Tractor Test 861: |
| Test Date: | November 1963
|
| Engine: | LP gas
|
| PTO (rated eng speed): | 93.4 hp [69.6 kW]
|
| PTO fuel use (rated): | 9.7 hh/g [1.9 kWh/l]
|
| Drawbar (max): | 81.5 hp [60.8 kW]
|
| | |
| |
| 1963: 501 (Farmall) |
| 1964: 4709 (Farmall) |
| 1965: 15946 (Farmall) |
| 1966: 24038 (Farmall) |
| 1967: 34943 (Farmall) |
| 1963: 501 (IH) |
| 1964: 1403 (IH) |
| 1965: 3758 (IH) |
| 1966: 5917 (IH) |
| 1967: 7409 (IH) |
