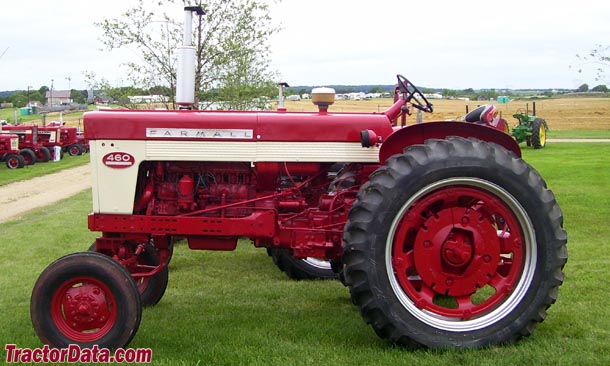

    Farmall 460

    No photo available
    Production years:1958 - 1963
    Previous model:Farmall 350
    Tractor type:Farm/Agricultural tractor
    Larger:Farmall 560




    General tractor information:

    Manufacturer:Farmall
    Brand:Farmall
    Model:460
    Type:Farm/Agricultural tractor
    Total built:-unknown-
    Factory:-unknown-
    Original price:$4,100 (1963)


    Tractor power:

    Drawbar (rated):45.3 hp [33.8 kW]
    Drawbar (max):36.19 hp [27.0 kW]
    PTO (rated):50.1 hp [37.4 kW]
    Plows:4
    No photo of this tractor


    Variants:

    IH 460:utility
    Hi-Clear:high-crop


    Engine:

    Manufacturer:International Harvester
    Model:C221
    Fuel:gasoline
    Cylinders:6
    Bore/Stroke:3.5625x3.6875 inches [90 x 94 mm]
    Displacement:221 ci [3.6 L]
    Compression:7.2:1
    Rated RPMs:1800
    Cooling:liquid
    Torque:-unknown-
    Firing order:-unknown-


    Engine:

    Manufacturer:International Harvester
    Model:D236
    Fuel:diesel
    Cylinders:6
    Bore/Stroke:3.6875x3.6875 inches [94 x 94 mm]
    Displacement:236 ci [3.9 L]
    Compression:-unknown-
    Rated RPMs:1800
    Cooling:liquid
    Torque:-unknown-
    Firing order:-unknown-
    Oil capacity:9 qts [8.5 L]
    Oil type:
    SAE30>45oF>7oC
    SAE10W-3010o-90oF-12o-32oC
    SAE10W-10o-45oF-23o-7oC



    Engine:

    Manufacturer:International Harvester
    Fuel:LP gas
    Cylinders:6
    Bore/Stroke:3.5625x3.6875 inches [90 x 94 mm]
    Displacement:221 ci [3.6 L]
    Compression:8.75:1
    Rated RPMs:1800
    Cooling:liquid
    Torque:-unknown-
    Firing order:-unknown-


    Transmission:

    Type:sliding gear
    Forward:5
    Reverse:1
    Capacity:40 qts [37.9 L]
    Oil type:
    IH Hy-Tran

    Comments:Tractor must be stopped and clutch used to shift gears.
    Speeds:with 12.4-38 rear tires.

    Gear rpm
    12.6mph [4.2kph]
    23.9mph [6.3kph]
    35.3mph [8.5kph]
    47.5mph [12.1kph]
    516.6mph [26.7kph]
    R3.2mph [5.1kph]



    Transmission:

    Type:Torque Amplifier
    Forward:10
    Reverse:2
    Capacity:40 qts [37.9 L]
    Oil type:
    IH Hy-Tran

    Comments:The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 460 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it.
    Speeds:With 12.4-38 rear tires.

    Gear rpm
    1-TA1.7mph [2.7kph]
    1-DD2.6mph [4.2kph]
    2-TA2.7mph [4.3kph]
    2-DD3.9mph [6.3kph]
    3-TA3.6mph [5.8kph]
    3-DD5.3mph [8.5kph]
    4-TA5.1mph [8.2kph]
    4-DD7.5mph [12.1kph]
    5-TA11.2mph [18.0kph]
    5-DD16.6mph [26.7kph]
    R-TA2.2mph [3.5kph]
    R-DD3.2mph [5.1kph]



    Mechanical:

    Chassis:4x2 2WD
    Steering:-unknown-
    Brakes:-unknown-


    Capacity:

    Fuel:-unknown-


    Power Take-off (PTO):

    Rear PTO:independent
    Rear speed (RPM):540


    Hydraulics:

    Type:-unknown-
    Capacity:10 gal [37 L]
    Total flow:-unknown-
    Valve flow:12 gpm [45.4 lpm]
    Pressure:-unknown-
    Valves:2


    Tires:

    Ag front:5.50-16
    6.00-20 (Hi-Clear)
    Ag rear:12.4-38
    11-38 (Hi-Clear)


    Dimensions:

    Weight:5,835 lbs [2646 kg] (gas operating)
    6,055 lbs [2746 kg] (diesel operating)
    8,931 lbs [4051 kg] (ballasted)
    Wheelbase:95 inches [241 cm]
    100 inches [254 cm] (Hi-Clear)
    Length:140 inches [355 cm]
    153 inches [388 cm] (Hi-Clear)
    Width:83.5 inches [212 cm] (min)
    86 inches [218 cm] (Hi-Clear min)
    105 inches [266 cm] (max)
    Height:78 inches [198 cm] (steering wheel)
    90 inches [228 cm] (Hi-Clear steering)
    Ground clearance:19.5 inches [49 cm] (frame)
    22 inches [55 cm] (front-axle)
    25.5 inches [64 cm] (rear axle)
    30.5 inches [77 cm] (Hi-Clear frame)
    2WD turn circle:9.5 feet [2.9 m]
    9 feet [2.7 m] (with brake)
    14.5 feet [4.4 m] (Hi-Clear)


    Electrical:

    Starter volts:12
    System:generator
    Amps:20


    Battery:

    Number:2 (diesel)
    Volts:6 (diesel)


    Nebraska Tractor Test 670:

    Test Date:September 22 - October 3, 1958
    Engine:gasoline
    PTO (rated eng speed):46.94 hp [35.0 kW]
    PTO fuel use (rated):12.23 hh/g [2.4 kWh/l]
    Drawbar (max):35.95 hp [26.8 kW]


    Nebraska Tractor Test 672:

    Test Date:September 30 - October 11, 1958
    Engine:diesel
    PTO (rated eng speed):50.1 hp [37.4 kW]
    PTO fuel use (rated):14.04 hh/g [2.8 kWh/l]
    Drawbar (max):36.19 hp [27.0 kW]


    Nebraska Tractor Test 676:

    Test Date:October 20 - 25, 1958
    Engine:LP gas
    PTO (rated eng speed):46.86 hp [34.9 kW]
    PTO fuel use (rated):9.29 hh/g [1.8 kWh/l]
    Drawbar (max):36.17 hp [27.0 kW]


    460 Serial Numbers:

    Location: Clutch housing, right side

    1958: 501
    1959: 4765
    1960: 16902
    1961: 22622
    1963: 31552
    Final: 33028


    Comments:


    The Farmall 460 experienced rear-end problems associated with too much engine power for the final drive. International offered an entirely new rear end in mid 1959 to replace the original.
