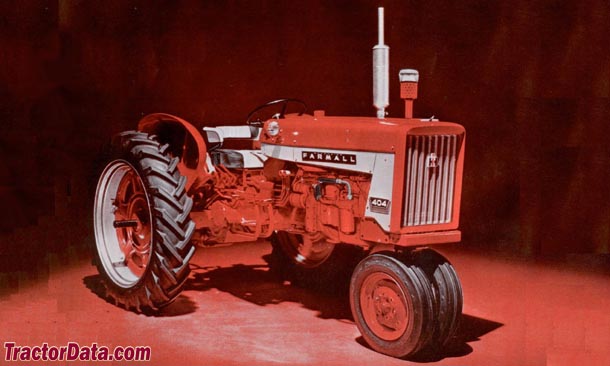

| Farmall 404 tractor photo |
| |
| |
Dimensions: |
| Weight (shipping): | 3,400 lbs [1542 kg]
|
| Weight (operating): | 4,115 lbs [1866 kg]
|
| Weight (ballasted): | 6,645 lbs [3014 kg]
|
| Wheelbase: | 82.2 inches [208 cm] (tricycle)
87.8 inches [223 cm] (wide front)
|
| Length: | 94 inches [238 cm]
|
| Width: | -unknown- |
| Height (steering wheel): | 64.1 inches [162 cm]
|
| Ground clearance: | -unknown- |
| |
Farmall 404 Tires: |
| Ag front: | 5.00-15
|
| Ag rear: | 11.2-36
|
| |
Engine: |
| Manufacturer: | International Harvester
|
| Model: | C-135
|
| Fuel: | gasoline
|
| Aspiration: | natural
|
| Cylinders: | 4
|
| Valves: | -unknown- |
| Bore/Stroke: | 3.25x4.0625 inches [83 x 103 mm]
|
| Displacement: | 134.8 ci [2.2 L]
|
| Cooling: | liquid
|
| Coolant: | 15 qts [14.2 L]
|
| Air cleaner: | oil bath
|
| Compression: | 7.7:1
|
| Rated RPMs: | 2000
|
| Starter volts: | 12
|
| Oil capacity: | 7 qts [6.6 L]
|
| |
Engine: |
| Manufacturer: | International Harvester
|
| Model: | C-135
|
| Fuel: | LP-gas
|
| Aspiration: | natural
|
| Cylinders: | 4
|
| Valves: | -unknown- |
| Bore/Stroke: | 3.25x4.0625 inches [83 x 103 mm]
|
| Displacement: | 134.8 ci [2.2 L]
|
| Cooling: | liquid
|
| Coolant: | 15 qts [14.2 L]
|
| Air cleaner: | oil bath
|
| Compression: | 8:1
|
| Rated RPMs: | 2000
|
| Starter volts: | 12
|
| Oil capacity: | 7 qts [6.6 L]
|
| |
Transmission: |
| Forward: | 4
|
| Reverse: | 1
|
| Oil capacity: | 20 qts [18.9 L]
|
| Speeds: | With 11.2-36 rear tires.
| Gear | 2000 rpm | | 1 | 2.25mph [3.6kph] | | 2 | 4.25mph [6.8kph] | | 3 | 5.50mph [8.8kph] | | 4 | 14.75mph [23.7kph] | | R | 3.50mph [5.6kph] |
|
| |
Transmission: |
| Transmission: | Dual-Range
|
| Forward: | 8
|
| Reverse: | 2
|
| Oil capacity: | 20 qts [18.9 L]
|
| Comments: | Add high range to basic four-speed transmission.
|
| Speeds: | With 11.2-36 rear tires.
| Gear | 2000 rpm | | 1L | 2.25mph [3.6kph] | | 2L | 4.25mph [6.8kph] | | 3L | 5.50mph [8.8kph] | | 4L | 14.75mph [23.7kph] | | 1H | 3.25mph [5.2kph] | | 2H | 6.0mph [9.7kph] | | 3H | 8.0mph [12.9kph] | | 4H | 21.0mph [33.8kph] | | RL | 3.50mph [5.6kph] | | RH | 5.0mph [8.0kph] |
|
|
|
| |
Transmission: |
| Type: | manual shuttle
|
| Forward: | 4
|
| Reverse: | 4
|
| Oil capacity: | 20 qts [18.9 L]
|
| Speeds: | With 11.2-36 rear tires.
| Gear | 2000 rpm | | 1F | 2.25mph [3.6kph] | | 2F | 4.25mph [6.8kph] | | 3F | 5.50mph [8.8kph] | | 4F | 14.75mph [23.7kph] | | 1R | 2.68mph [4.3kph] | | 2R | 5.06mph [8.1kph] | | 3R | 6.55mph [10.5kph] | | 4R | 17.55mph [28.2kph] |
|
| |
Nebraska Tractor Test 818: |
| Test Date: | May 21 - June 4, 1962
|
| Type: | 8-speed 2WD
|
| Engine: | gasoline
|
| PTO power (rated engine speed): | 36.70 hp [27.4 kW]
|
| PTO fuel use (engine speed): | 3.0 gal/hour [11.4 l/hour]
|
| Drawbar power (max): | 32.97 hp [24.6 kW]
|
| Drawbar fuel use (max): | 3.0 gal/hour [11.4 l/hour]
|
| Drawbar pull (max): | 4,999 lbs [2267 kg]
|
| Max pull gear: | 1-Low
|
| Test report: | PDF file
|
| |
