     Original Farmall Hundred Series 1954-1958
    Original Farmall Hundred Series 1954-1958

    Farmall 350

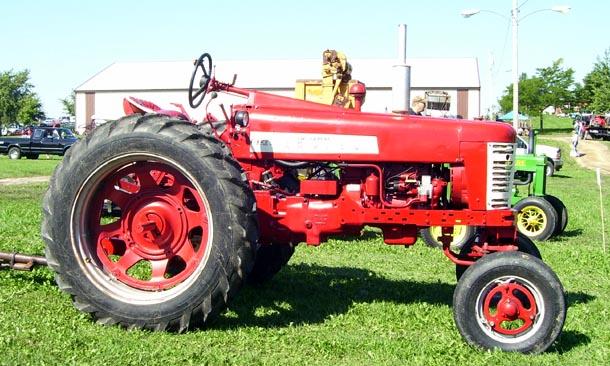

    Farmall 350 tractor photo
    Production years:1956 - 1958
    Previous model:Farmall 300
    Next model:Farmall 460
    Tractor type:Farm/Agricultural tractor






    Production:

    Manufacturer:International Harvester
    Factory:-unknown-
    Total built:-unknown-
    Original price:$3,100 (1958)


    Variants:

    IH 350:utility tractor
    Farmall 350 High-Clearance:high-crop tractor


    Capacity:

    Fuel:17 gal [64.3 L] gas
    18 gal [68.1 L] diesel
    18.4 gal [69.6 L] LP gas


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    350 Serial Numbers:

    Location:Clutch housing, right side
    photo of 350 serial number

    1956: 501
    1957: 1030
    1958: 14674
    Final: 17215

    how to read serial numbers...



    Farmall 350 Power:

    Drawbar (tested):30.07 hp [22.4 kW]
    PTO (tested):36.36 hp [27.1 kW]
    Belt (tested):39.34 hp [29.3 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:-unknown-
    Brakes:-unknown-
    Cab:18


    Electrical:

    Ground:-unknown-


    Battery:

    Number:1
    Cold-cranking amps:-unknown-
    Volts:12
    Amp-hours:-unknown-

    Farmall 350 tractor photo
    Farmall 350 tractor photo

    Farmall 350 serial number location
    Farmall 350 serial number location




    Dimensions:

    Weight:5,365 lbs [2433 kg] (diesel)
    5,331 lbs [2418 kg] (gasoline)
    5,475 lbs [2483 kg] (LP gas)
    Wheelbase:92.25 inches [234 cm]
    Length:136 inches [345 cm]
    Width:83 inches [210 cm]
    Height:77.4 inches [196 cm] (steering wheel)
    85 inches [215 cm] (Farmall)
    Ground clearance:19 inches [48 cm]
    34 inches [86 cm] (high-clearance)


    Farmall 350 Tires:

    Ag front:5.50-16
    Ag rear:11.00x38
    13.6x38


    Engine:

    Manufacturer:Continental
    Model:D193
    Fuel:diesel
    Cylinders:4
    Valves:-unknown-
    Bore/Stroke:3.75x4.375 inches [95 x 111 mm]
    Displacement:193 ci [3.2 L]
    Cooling:liquid
    Coolant:17.25 qts [16.3 L]
    Compression:16.87:1
    Rated RPMs:1750
    Starter type:-unknown-


    Engine:

    Manufacturer:International Harvester
    Model:C175
    Fuel:gasoline
    Type:vertical I-head
    Cylinders:4
    Valves:-unknown-
    Bore/Stroke:3.625x4.25 inches [92 x 108 mm]
    Displacement:175 ci [2.9 L]
    Cooling:liquid
    Coolant:19 qts [18.0 L]
    Compression:7.0:1
    Rated RPMs:1750
    Starter type:-unknown-


    Engine:

    Manufacturer:International Harvester
    Model:C175
    Fuel:LP gas
    Cylinders:4
    Valves:-unknown-
    Bore/Stroke:3.625x4.25 inches [92 x 108 mm]
    Displacement:175 ci [2.9 L]
    Cooling:liquid
    Coolant:19 qts [18.0 L]
    Compression:9.0:1
    Rated RPMs:2000
    Starter type:-unknown-


    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:-unknown-
    Speeds:
    Gear
    12.5mph [4.0kph]
    23.8mph [6.1kph]
    35.2mph [8.4kph]
    46.6mph [10.6kph]
    516.1mph [25.9kph]
    R13.1mph [5.0kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:-unknown-
    Comments:The Torque Amplifier (TA) provides a clutchless shift-on-the-move between normal, direct drive (DD) and the TA. By engaging the TA, tractor ground speed is reduced and torque is increased.
    Speeds:
    Gear
    1TA1.7mph [2.7kph]
    1DD2.5mph [4.0kph]
    2TA2.6mph [4.2kph]
    2DD3.8mph [6.1kph]
    3TA3.5mph [5.6kph]
    3DD5.2mph [8.4kph]
    4TA4.5mph [7.2kph]
    4DD6.6mph [10.6kph]
    5TA10.9mph [17.5kph]
    5DD16.1mph [25.9kph]
    R1TA2.1mph [3.4kph]
    R1DD3.1mph [5.0kph]



    Nebraska Tractor Test 609:

    Test Date:March 1957
    Engine:diesel
    Belt power (max):38.65 hp [28.8 kW]
    Belt fuel use (max):2.6 gal/hour [9.8 l/hour]
    PTO power (rated engine speed):34.28 hp [25.6 kW]
    PTO fuel use (engine speed):2.4 gal/hour [9.1 l/hour]
    Drawbar power (max):27.76 hp [20.7 kW]
    Drawbar fuel use (max):2.2 gal/hour [8.3 l/hour]
    Test report:PDF file


    Nebraska Tractor Test 611:

    Test Date:April 1957
    Engine:gasoline
    Belt power (max):39.31 hp [29.3 kW]
    Belt fuel use (max):3.2 gal/hour [12.1 l/hour]
    PTO power (rated engine speed):36.21 hp [27.0 kW]
    PTO fuel use (engine speed):3.1 gal/hour [11.7 l/hour]
    Drawbar power (max):28.76 hp [21.4 kW]
    Drawbar fuel use (max):2.9 gal/hour [11.0 l/hour]
    Test report:PDF file


    Nebraska Tractor Test 622:

    Test Date:May 1957
    Engine:LP gas
    Belt power (max):39.34 hp [29.3 kW]
    Belt fuel use (max):4.1 gal/hour [15.5 l/hour]
    PTO power (rated engine speed):36.36 hp [27.1 kW]
    PTO fuel use (engine speed):3.9 gal/hour [14.8 l/hour]
    Drawbar power (max):30.07 hp [22.4 kW]
    Drawbar fuel use (max):3.6 gal/hour [13.6 l/hour]
    Test report:PDF file
