International Harvester Tractor Data Book
|

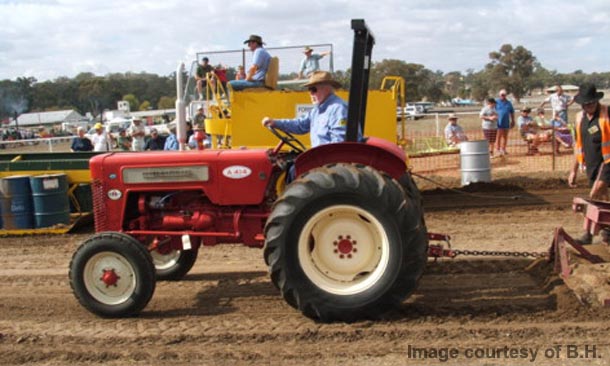

International Harvester A-414
|
| Production years: | 1962 - 1966
|
| Tractor type: | Farm/Agricultural tractor
|
|
| | General tractor information: |
| Manufacturer: | International Harvester
|
| Model: | A-414
|
| Type: | Farm/Agricultural tractor
|
| Total built: | -unknown- |
| Factory: | Geelong, Australia
|
| Original price: | -unknown- |
| | Tractor power: |
| Engine: | 40 hp [29.8 kW]
|
| Drawbar (rated): | 33.1 hp [24.7 kW]
|
| PTO (rated): | 36.7 hp [27.4 kW]
|
| Belt: | 36 hp [26.8 kW]
|
 |
 |
| | Variants: |
| HI-CLEAR: | high-crop option
|
| | Engine: |
| Manufacturer: | International Harvester
|
| Model: | AD-154
|
| Fuel: | diesel
|
| Cylinders: | 4
|
| Bore/Stroke: | 3.50x4.00 inches [89 x 102 mm]
|
| Displacement: | 154 ci [2.5 L]
|
| Horsepower: | 40 hp [29.8 kW]
|
| Compression: | 22:1
|
| Rated RPMs: | 2000
|
| Cooling: | liquid
|
| Coolant: | 10.32 qts [9.8 L]
|
| Torque: | 115 lb-ft [155.9 Nm]
|
| Torque RPMs: | 1300
|
| Firing order: | -unknown- |
| Oil capacity: | 4.64 qts [4.4 L]
|
| | Transmission: |
| Type: | -unknown- |
| Forward: | 8
|
| Reverse: | 2
|
| Capacity: | 16.51 qts [15.6 L]
|
| Speeds: | With 13.6-28 rear tires.
| Gear | 2000 rpm | | L1 | 1.46mph [2.3kph] | | L2 | 2.50mph [4.0kph] | | L3 | 3.56mph [5.7kph] | | L4 | 4.26mph [6.9kph] | | H1 | 5.31mph [8.5kph] | | H2 | 7.28mph [11.7kph] | | H3 | 10.37mph [16.7kph] | | H4 | 15.49mph [24.9kph] | | LR | 2.22mph [3.6kph] | | HR | 6.46mph [10.4kph] |
|
|
|
|
| | Mechanical: |
| Chassis: | 4x2 2WD
|
| Steering: | -unknown- |
| Brakes: | differential mechanical disc
|
| Cab: | Open operator station.
|
| | Capacity: |
| Fuel: | 10.94 gal [41 L]
|
| | |
| Rear PTO: | transmission
live optional
|
| Rear speed (RPM): | 545
545/745 optional
|
| | Tires: |
| Ag front: | 6.00-16
|
| Ag rear: | 13.6-28
|
| Ag front: | 7.50-16
|
| Ag rear: | 14.9-24
14.9-28
16.9-28
12.4x38 (HI-CLEAR)
13.6x38 (HI-CLEAR)
|
| | Dimensions: |
| Weight (operating): | 3,890 lbs [1764 kg]
|
| Weight (ballasted): | 4,870 lbs [2209 kg]
|
| Wheelbase: | -unknown- |
| Length: | 114.375 inches [290 cm]
|
| Width: | 62 inches [157 cm]
|
| Height: | 61.5 inches [156 cm]
|
| Ground clearance: | 17.25 inches [43 cm]
|
| | Electrical: |
| Starter volts: | 12
|
| | Battery: |
| Number: | 1
|
| Volts: | 12
|
| | Comments: |
| |
| The McCormick A-414 was the Australian version of the British B-414 utility tractor. |
| |
