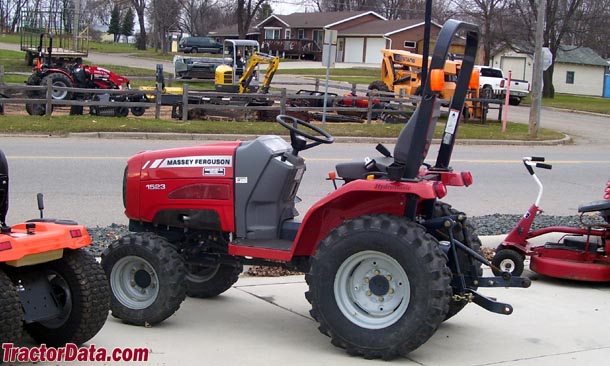

World-Wide Guide to Massey Ferguson Tractors
|
 |
Massey Ferguson 1523 |
| | General tractor information: |
| Manufacturer: | Massey Ferguson
|
| Model: | 1523
|
| Type: | Farm/Agricultural tractor
|
| Years produced: | -
|
| Total built: | -unknown- |
| Factory: | -unknown- |
| Original price: | -unknown- |
| | Tractor power: |
| Engine: | 22.5 hp [16.8 kW]
|
| PTO (rated): | 18.7 hp [13.9 kW]
|
| | Engine: |
| Manufacturer: | -unknown- |
| Fuel: | diesel
|
| Cylinders: | 3
|
| Bore/Stroke: | -unknown- |
| Displacement: | 68.5 ci [1.1 L]
|
| Horsepower: | 22.5 hp [16.8 kW]
|
| Compression: | -unknown- |
| Rated RPMs: | 2600
|
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Transmission: |
| Type: | constant mesh
|
| Forward: | 6
|
| Reverse: | 2
|
| | Transmission: |
| Type: | hydrostatic
|
| Forward: | infinite 2-range
|
| Reverse: | infinite 2-range
|
|
|
|
| | Mechanical: |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | -unknown- |
| Steering pump flow: | 2.64 gpm [10.0 lpm]
|
| Brakes: | wet disc
|
| Cab: | fixed ROPS
|
| | Capacity: |
| Fuel: | 6.6 gal [24 L]
|
| | 3-Point Hitch: |
| Rear Hitch Category: | I
|
| Rear lift: | 1,190 lbs [539 kg] (at ends)
|
| | |
| Rear PTO: | transmission
independent with hydro
|
| Rear speed (RPM): | 540
|
| Mid PTO: | optional
standard with hydro
|
| Mid speed (RPM): | 2000
|
| | Hydraulics: |
| Type: | open center
|
| Capacity: | -unknown- |
| Total flow: | 8.04 gpm [30.4 lpm]
|
| Valve flow: | 5.4 gpm [20.4 lpm]
|
| Pressure: | -unknown- |
| Valves: | -unknown- |
| | Tires: |
| Ag front: | -unknown- |
| Ag rear: | -unknown- |
| | Dimensions: |
| Weight: | 1,532 lbs [694 kg] (shipping
|
| Wheelbase: | 59.8 inches [151 cm]
|
| Length: | 102 inches [259 cm]
|
| Width: | 42.3 inches [107 cm]
|
| Height: | 77 inches [195 cm]
|
| Ground clearance: | 10.4 inches [26 cm]
|
| | Electrical: |
