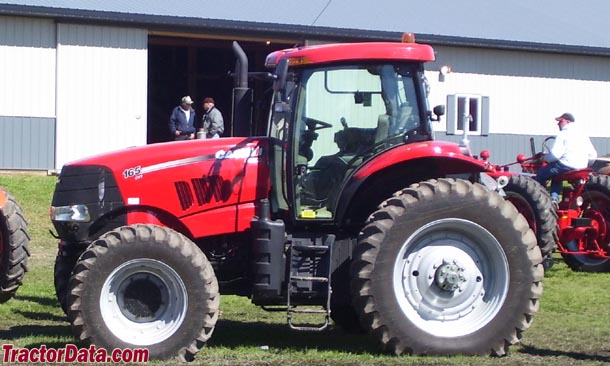

| CaseIH Puma 165 tractor photo |
| |
| |
Dimensions: |
| Weight (shipping): | 15,708 lbs [7125 kg] (4WD)
|
| Weight (operating): | 17,725 lbs [8040 kg] (4WD)
|
| Wheelbase: | 113.6 inches [288 cm]
|
| Length: | -unknown- |
| Width: | -unknown- |
| Height: | 119.7 inches [304 cm] (cab)
122.6 inches [311 cm] (exhaust)
|
| Ground clearance: | -unknown- |
| |
CaseIH Puma 165 Tires: |
| Ag front: | -unknown- |
| Ag rear: | -unknown- |
| |
Engine: |
| Manufacturer: | CNH
|
| Fuel: | diesel
|
| Aspiration: | intercooled turbocharged
|
| Cylinders: | 6
|
| Valves: | 24
|
| Bore/Stroke: | 4.094x5.197 inches [104 x 132 mm]
|
| Displacement: | 411 ci [6.7 L]
|
| Horsepower: | 165 hp [123.0 kW]
|
| Cooling: | liquid
|
| Air cleaner: | dual paper elements with aspirator
|
| Compression: | 16.5:1
|
| Rated RPMs: | 2200
|
| Starter volts: | 12
|
| Oil capacity: | 16 qts [15.1 L]
|
| |
Transmission: |
| Transmission: | powershift
|
| Forward: | 17
|
| Reverse: | 6
|
| Oil capacity: | -unknown- |
| |
Transmission: |
| Transmission: | powershift
|
| Forward: | 18
|
| Reverse: | 6
|
| Oil capacity: | -unknown- |
|
|
| |
Transmission: |
| Transmission: | powershift
|
| Forward: | 19
|
| Reverse: | 6
|
| Oil capacity: | -unknown- |
| |
Transmission: |
| Transmission: | Continuously Variable Transmission (CVT)
|
| Forward: | infinite
|
| Reverse: | infinite
|
| Oil capacity: | -unknown- |
| Comments: | CVT first available on the Puma 165 starting in late 2008
|
| |
OCED Tractor Test 2410: |
| Nebraska summary: | 620
|
| Test Date: | April 1 - July 1, 2007
|
| Type: | 19-speed 4WD
|
| Engine: | diesel
|
| PTO power (max): | 163.2 hp [121.7 kW]
|
| PTO fuel use (max): | 9.5 gal/hour [36.0 l/hour]
|
| PTO power (rated engine speed): | 139.7 hp [104.2 kW]
|
| PTO fuel use (engine speed): | 9.4 gal/hour [35.6 l/hour]
|
| PTO power (rated PTO speed): | 141.5 hp [105.5 kW]
|
| PTO fuel use (PTO speed): | 9.3 gal/hour [35.2 l/hour]
|
| Drawbar power (max): | 107.0 hp [79.8 kW]
|
| Drawbar fuel use (max): | 9.4 gal/hour [35.6 l/hour]
|
| Drawbar pull (max): | 16,345 lbs [7414 kg]
|
| Max pull gear: | 6
|
| Test report: | PDF file
|
| |
