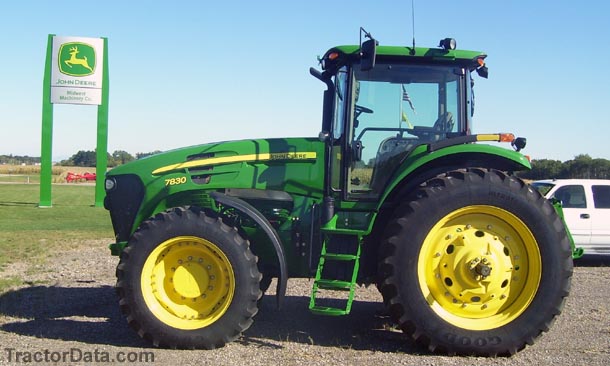

John Deere 7830
General tractor information:
	Manufacturer:	John Deere
	Model:	7830
	Type:	Farm/Agricultural tractor
	Series:	7030
	Years produced:	2007 -
	Total built:	-unknown-
	Factory:	Waterloo, Iowa, USA
	Original price:	-unknown-
	Replaced:	John Deere 7820
Tractor power:
	Engine:	205 hp [152.9 kW]
	Drawbar (max):	148.48 hp [110.7 kW]
	PTO (max):	189.15 hp [141.0 kW]
	PTO (rated):	166.81 hp [124.4 kW]
Engine:
	Manufacturer:	John Deere
	Fuel:	diesel
	Aspiration:	intercooled turbocharged
	Cylinders:	6
	Bore/Stroke:	4.19x5.00 inches [106 x 127 mm]
	Displacement:	414 ci [6.8 L]
	Horsepower:	205 hp [152.9 kW]
	Compression:	17:1
	Rated RPMs:	2100
	Cooling:	liquid
	Torque:	-unknown-
	Firing order:	1-5-3-6-2-4
	Oil capacity:	27.5 qts [26.0 L]
Transmission:
	Type:	PowrQuad PLUS
	Forward:	16
	Reverse:	16
Transmission:
	Type:	AutoQuad PLUS
	Forward:	20
	Reverse:	20
Transmission:
	Type:	Infinitely Variable Transmission (IVT)
	Forward:	infinite
	Reverse:	infinite
Mechanical:
	Chassis:	4x2 2WD 4x4 MFWD 4WD optional
	Steering:	hydrostatic power
	Brakes:	hydraulic wet disc
Capacity:
	Fuel:	103 gal [389 L] 94 gal [355 L] (with right-hand steps)
3-Point Hitch:
	Rear Hitch Category:	III
	Rear lift:	10,050 lbs [4558 kg] 14,000 lbs [6350 kg] (optional)
Power Take-off (PTO):
	Rear PTO:	independent
	Rear speed (RPM):	540/1000
Hydraulics:
	Type:	Closed, PFC
	Capacity:	28.5 gal [107 L]
	Total flow:	32 gpm [121.1 lpm] 45 gpm [170.3 lpm] (optional)
	Valve flow:	30 gpm [113.6 lpm]
	Pressure:	-unknown-
	Valves:	2 to 7
Tires:
	Ag front:	11.00-16
	Ag rear:	480/80R46
Dimensions:
	Weight:	17,200 lbs [7801 kg]
	Wheelbase:	116.8 inches [296 cm] (2WD) 112.6 inches [286 cm] (4WD)
	Length:	225 inches [571 cm]
	Width:	96 inches [243 cm]
	Height:	121 inches [307 cm]
	Ground clearance:	22.3 inches [56 cm]
Electrical:
	Amps:	200
OCED Tractor Test 562:
	Nebraska summary:	1895
	Test Date:	March 2007
	Type:	20 speed
	Engine:	diesel
	PTO (max):	189.15 hp [141.0 kW]
	PTO (rated eng speed):	166.81 hp [124.4 kW]
	PTO fuel use (rated):	17.35 hh/g [3.4 kWh/l]
	Drawbar (max):	148.48 hp [110.7 kW]
