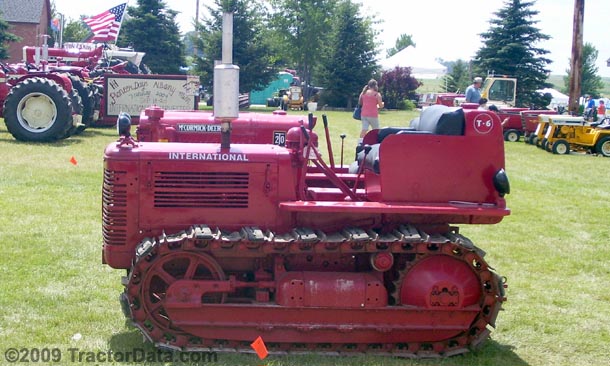

International Harvester T-6
|
| Production years: | 1940 - 1959
|
| Tractor type: | Farm/Agricultural tractor
|
|
| | General tractor information: |
| Manufacturer: | International Harvester
|
| Model: | T-6
|
| Type: | Farm/Agricultural tractor
|
| Total built: | 38,450
|
| Factory: | -unknown- |
| Original price: | -unknown- |
| | Tractor power: |
| Drawbar (max): | 39.9 hp [29.8 kW]
|
| Plows: | 4
|
 |
 |
| | Variants: |
| TD-6: | diesel engine
|
| | Engine: |
| Manufacturer: | International Harvester
|
| Fuel: | gasoline
|
| Type: | vertical I-head
|
| Cylinders: | 4
|
| Bore/Stroke: | 3.875x5.25 inches [98 x 133 mm]
|
| Displacement: | 247.7 ci [4.1 L]
|
| Compression: | -unknown- |
| Rated RPMs: | 1450
|
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | 1-3-4-2
|
| | Engine: |
| Manufacturer: | International Harvester
|
| Fuel: | gasoline
|
| Cylinders: | 4
|
| Bore/Stroke: | 4.00x5.25 inches [102 x 133 mm]
|
| Displacement: | 264 ci [4.3 L]
|
| Compression: | 6.3:1
|
| Rated RPMs: | 1550
|
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | 1-3-4-2
|
| | Transmission: |
| Type: | -unknown- |
| Forward: | 5
|
| Reverse: | 1
|
| Speeds: | | Gear | 1450 rpm | | 1 | 1.5mph [2.4kph] | | 2 | 2.2mph [3.5kph] | | 3 | 3.1mph [5.0kph] | | 4 | 3.8mph [6.1kph] | | 5 | 5.4mph [8.7kph] | | R | 1.7mph [2.7kph] |
|
|
|
|
| | Mechanical: |
| Chassis: | crawler
|
| Steering: | -unknown- |
| Brakes: | -unknown- |
| | Capacity: |
| Fuel: | 20 gal [75 L]
|
| Coolant: | 38 qts [36.0 L]
|
| | |
| | Tires: |
| Ag front: | 12-inch tracks
|
| Ag rear: | 12-inch tracks
|
| | Dimensions: |
| Weight: | 7,500 lbs [3402 kg]
|
| Wheelbase: | -unknown- |
| Length: | 104 inches [264 cm]
|
| Width: | 63 inches [160 cm]
|
| Height: | 58 inches [147 cm]
|
| Ground clearance: | -unknown- |
| | Electrical: |
| | Battery: |
| Number: | -unknown- |
| Volts: | 6
|
| | Nebraska Tractor Test 346: |
| Test Date: | June 1940
|
| Engine: | 248 gasoline
|
| Belt (max): | 37 hp [27.6 kW]
|
| Drawbar (max): | 30.9 hp [23.0 kW]
|
| | Nebraska Tractor Test 589: |
| Test Date: | August 1956
|
| Engine: | 264 gasoline
|
| Belt (max): | 48.1 hp [35.9 kW]
|
| Drawbar (max): | 39.9 hp [29.8 kW]
|
| | |
| Location: lower-left dash |
| |
