     Original Farmall Hundred Series 1954-1958
    Original Farmall Hundred Series 1954-1958

    International Harvester T-340

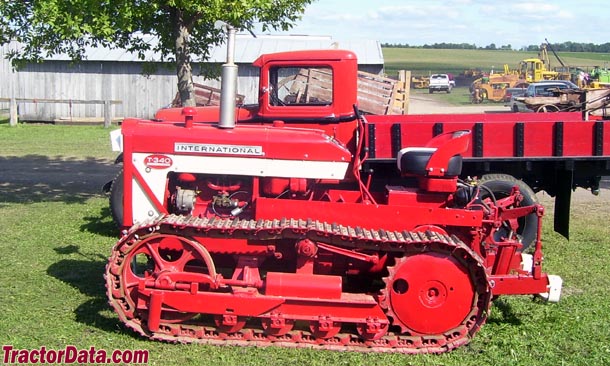

    International Harvester T-340 tractor photo
    Production years:1959 - 1965
    Tractor type:Farm/Agricultural tractor






    Production:

    Manufacturer:International Harvester
    Factory:-unknown-
    Total built:8,025
    Original price:-unknown-


    Variants:

    TD-340:diesel


    Capacity:

    Fuel:15 gal [56.8 L]


    T-340 Serial Numbers:

    Location:Right side of tractor on transmission bell housing.
    photo of T-340 serial number

    1959: 501
    1960: 1979
    1961: 4344
    1962: 5449
    1963: 6397
    1964: 7338
    1965: 8525

    how to read serial numbers...



    Links:

    T340 Webpage: site with information on the T-340 and TD-340 crawler


    International Harvester T-340 Power:

    Drawbar (claimed):31 hp [23.1 kW]
    Belt (claimed):36.5 hp [27.2 kW]
    Drawbar (tested):28.3 hp [21.1 kW]
    Belt (tested):36.5 hp [27.2 kW]


    Mechanical:

    Chassis:crawler
    Steering:-unknown-
    Brakes:-unknown-


    Electrical:

    Ground:-unknown-


    Battery:

    Number:-unknown-
    Cold-cranking amps:-unknown-
    Volts:6
    Amp-hours:-unknown-

    International Harvester T-340 tractor photo
    International Harvester T-340 tractor photo

    International Harvester T-340 serial number location
    International Harvester T-340 serial number location




    Dimensions:

    Weight:6,000 lbs [2721 kg]
    Wheelbase:-unknown-
    Length:125 inches [317 cm]
    Width:58 inches [147 cm]
    Height:58 inches [147 cm]
    Ground clearance:-unknown-


    International Harvester T-340 Tires:

    Ag front:tracks
    Ag rear:tracks


    Engine:

    Manufacturer:International Harvester
    Fuel:gasoline
    Type:vertical L-head
    Cylinders:4
    Valves:-unknown-
    Bore/Stroke:3.25x4.0625 inches [83 x 103 mm]
    Displacement:134.8 ci [2.2 L]
    Cooling:-unknown-
    Compression:7.38:1
    Rated RPMs:2000
    Starter type:-unknown-


    Transmission:

    Forward:4
    Reverse:1
    Oil capacity:-unknown-


    Nebraska Tractor Test 725:

    Test Date:October 1959
    Engine:gasoline
    Belt power (max):36.5 hp [27.2 kW]
    Drawbar power (max):28.3 hp [21.1 kW]
