Original John Deere Letter Series Tractors
|

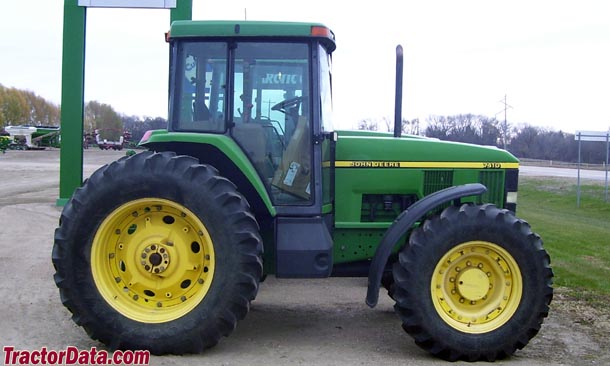

John Deere 7410
|
| Production years: | 1997 - 2002
|
| Previous model: | John Deere 7400
|
| Tractor type: | Farm/Agricultural tractor
|
|
| | General tractor information: |
| Manufacturer: | John Deere
|
| Model: | 7410
|
| Type: | Farm/Agricultural tractor
|
| Series: | 7010
|
| Total built: | -unknown- |
| Factory: | Waterloo, Iowa, USA
|
| Original price: | $56,000
|
| | Tractor power: |
| Engine: | 120 hp [89.5 kW]
|
| Drawbar (max): | 95.86 hp [71.5 kW]
|
| PTO (rated): | 106.39 hp [79.3 kW]
|
 |
 |
| | Engine: |
| Manufacturer: | John Deere
|
| Fuel: | diesel
|
| Aspiration: | turbocharged
|
| Cylinders: | 6
|
| Bore/Stroke: | 4.19x5.00 inches [106 x 127 mm]
|
| Displacement: | 414 ci [6.8 L]
|
| Horsepower: | 120 hp [89.5 kW]
|
| Compression: | 17:1
|
| Rated RPMs: | 2100
|
| Cooling: | liquid
|
| Coolant: | 20 qts [18.9 L]
|
| Torque: | 362 lb-ft [490.9 Nm]
|
| Firing order: | 1-5-3-6-2-4
|
| Oil capacity: | 20 qts [18.9 L]
|
| | Transmission: |
| Type: | SyncroPlus
|
| Forward: | 12
|
| Reverse: | 4
|
| | Transmission: |
| Type: | PowrQuad
|
| Forward: | 16
|
| Reverse: | 16
|
|
|
|
| | Mechanical: |
| Chassis: | 4x2 2WD
4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard.
|
| | Capacity: |
| Fuel: | 50 gal [189 L]
|
| | 3-Point Hitch: |
| Rear Hitch Category: | 2, 3N/2 optional
|
| Rear lift: | 7,400 lbs [3356 kg]
|
| | |
| Rear PTO: | -unknown- |
| Rear speed (RPM): | 540/1000
|
| | Hydraulics: |
| Type: | pressure & flow compensated
|
| Capacity: | -unknown- |
| Total flow: | 16 gpm [60.6 lpm]
|
| Valve flow: | -unknown- |
| Pressure: | -unknown- |
| Valves: | 2 to 4
|
| | Tires: |
| Ag front: | 11.00-16 (8)
|
| Ag rear: | 18.4R38
|
| | Dimensions: |
| Weight (operating): | 12,855 lbs [5831 kg] (4WD PowrQuad)
|
| Wheelbase: | 112 inches [284 cm]
|
| Length: | 168 inches [426 cm]
|
| Width: | 96 inches [243 cm]
|
| Height: | 111 inches [281 cm]
|
| Ground clearance: | -unknown- |
| | Electrical: |
| Ground: | negative
|
| Amps: | 120
|
| | OCED Tractor Test 1740: |
| Nebraska summary: | 240
|
| Test Date: | 1997
|
| Type: | SynchroPlus 4WD
|
| Engine: | diesel
|
| PTO (rated eng speed): | 106.39 hp [79.3 kW]
|
| PTO fuel use (rated): | 17.07 hh/g [3.4 kWh/l]
|
| Drawbar (max): | 92.55 hp [69.0 kW]
|
| Test report: | PDF file
|
| | OCED Tractor Test 1741: |
| Nebraska summary: | 241
|
| Test Date: | 1997
|
| Type: | PowrQuad 4WD
|
| Engine: | diesel
|
| PTO (rated eng speed): | 103.32 hp [77.0 kW]
|
| PTO fuel use (rated): | 17.02 hh/g [3.4 kWh/l]
|
| Drawbar (max): | 95.86 hp [71.5 kW]
|
| Test report: | PDF file
|
| | |
| |
| 1997: 1001 |
| 1998: 10001 |
| 1999: 20001 |
| 2000: 30001 |
| 2001: 50001 |
| 2002: 70002 |
