The Big Book of Farmall Tractors
|

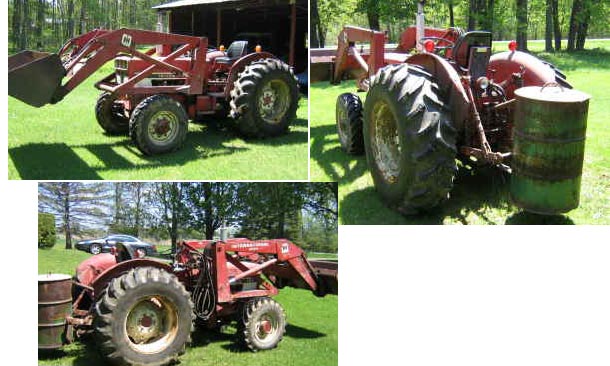

International Harvester 633
|
| Production years: | 1975 - 1978
|
| Tractor type: | Farm/Agricultural tractor
|
|
| | General tractor information: |
| Manufacturer: | International Harvester
|
| Model: | 633
|
| Type: | Farm/Agricultural tractor
|
| Total built: | -unknown- |
| Factory: | Neuss, Germany
|
| Original price: | -unknown- |
| | Tractor power: |
| Engine: | 52 hp [38.8 kW]
|
 |
 |
| | Engine: |
| Manufacturer: | International Harvester
|
| Fuel: | diesel
|
| Cylinders: | 3
|
| Bore/Stroke: | 3.875x5.0625 inches [98 x 129 mm]
|
| Displacement: | 179 ci [2.9 L]
|
| Horsepower: | 52 hp [38.8 kW]
|
| Compression: | -unknown- |
| Rated RPMs: | 2180
|
| Cooling: | -unknown- |
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Transmission: |
| Type: | -unknown- |
| Forward: | 8
|
| Reverse: | 4
|
|
|
|
| | Mechanical: |
| Chassis: | 4x2 2WD
4x4 MFWD 4WD optional
|
| Steering: | -unknown- |
| Brakes: | -unknown- |
| | Capacity: |
| Fuel: | 15.9 gal [60 L]
|
| | 3-Point Hitch: |
| Rear Hitch Category: | -unknown- |
| Rear lift: | 3969 lbs [1800 kg]
|
| | |
| Rear PTO: | -unknown- |
| Rear speed (RPM): | 540
|
| | Hydraulics: |
| Type: | -unknown- |
| Capacity: | -unknown- |
| Total flow: | -unknown- |
| Valve flow: | 8.6 gpm [32.6 lpm]
|
| Pressure: | -unknown- |
| Valves: | -unknown- |
| | Tires: |
| Ag front: | 7.50-16
10.5-20 (MFWD)
|
| Ag rear: | 12.4-36
|
| | Dimensions: |
| Weight: | 5,424 lbs [2460 kg]
5,854 lbs [2655 kg] (MFWD)
|
| Wheelbase: | 81.50 inches [207 cm]
|
| Length: | 135.83 inches [345 cm]
|
| Width: | -unknown- |
| Height: | 93.31 inches [237 cm]
|
| Ground clearance: | -unknown- |
| | Electrical: |
