John Deere 9520T |
| | General tractor information: |
| Manufacturer: | John Deere
|
| Model: | 9520T
|
| Type: | Farm/Agricultural tractor
|
| Years produced: | 2002 - 2007
|
| Total built: | -unknown- |
| Factory: | Waterloo, Iowa, USA
|
| Original price: | -unknown- |
| | Tractor power: |
| Engine: | 450 hp [335.6 kW]
|
| PTO (rated): | 302 hp [225.2 kW]
|
|
 |
| | Engine: |
| Manufacturer: | John Deere
|
| Fuel: | diesel
|
| Aspiration: | turbo
|
| Cylinders: | 6
|
| Bore/Stroke: | 5.00x6.50 inches [127 x 165 mm]
|
| Displacement: | 765 ci [12.5 L]
|
| Compression: | -unknown- |
| Rated RPMs: | -unknown- |
| Cooling: | liquid
|
| Torque: | -unknown- |
| Firing order: | -unknown- |
| | Transmission: |
| Type: | PowerShift
|
| Forward: | 18
|
| Reverse: | 6
|
|
|
|
| | Mechanical: |
| Chassis: | crawler
|
| Steering: | -unknown- |
| Brakes: | -unknown- |
| | Capacity: |
| Fuel: | -unknown- |
| | 3-Point Hitch: |
| Rear Hitch Category: | III, IV/IVN
|
| Rear lift: | 13,871 lbs [6291 kg]
14,445 lbs [6552 kg] (optional)
|
| | |
| Rear PTO: | -unknown- |
| Rear speed (RPM): | 1000
|
| | Hydraulics: |
| Type: | -unknown- |
| Capacity: | -unknown- |
| Total flow: | -unknown- |
| Valve flow: | 50.8 gpm [192.3 lpm]
|
| Pressure: | -unknown- |
| Valves: | 4 or 5
|
| | Tires: |
| Ag front: | 30 inch track (36 optional)
|
| Ag rear: | 30 inch track (36 optional)
|
| | Dimensions: |
| Weight: | 39,000 lbs [17690 kg]
|
| Wheelbase: | 111 inches [281 cm]
|
| Length: | -unknown- |
| Width: | -unknown- |
| Height: | -unknown- |
| Ground clearance: | -unknown- |
| | Electrical: |
| | |

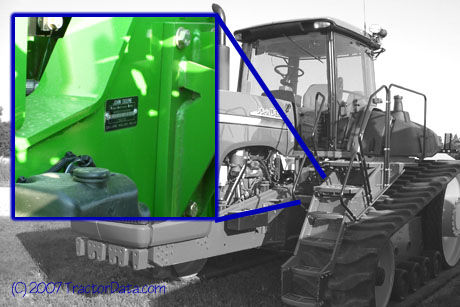

| Location: On frame near left-side step |
| |
|
 |
