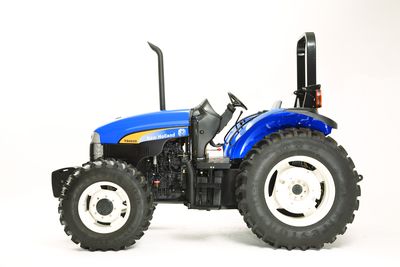

New Holland All-Purpose TS6000 Series Tractors

New Holland's new all-purpose TS6000 Series tractors deliver big engine and hydraulic power at an economical price. The TS6000 tractor range is based on the legendary durability of a driveline that is renowned around the world for getting the job done.

A new 274-cubic inch, four-cylinder diesel engine is turbocharged and intercooled providing maximum performance and fuel efficiency. Designed to run on standard diesel fuels or any biodiesel blend up to B100 that meets ASTM 6751 fuel quality standards, the TS6030 high-clearance tractor is Tier III emissions-compliant, fuel-efficient, durable and economical.

The TS6020 and TS6030 are available with a choice of four rugged transmissions:

• Standard 8F x 2R constant mesh transmission
• Optional 12F x 3R transmission adds a creeper range that includes four forward and 1 reverse creeper speeds
• Optional 16F x 4R Dual CommandTM transmission that provides an underdrive gear for each 8 x 2 gear at the push of a button for added torque.
• Optional 24F x 6R transmission adds a creeper range with underdrive gear to the 16 x 4 transmission

Model	PTO HP	Engine
TS6020	90	4-cylinder
TS6030	96	4-cylinder

Additional high-performance hydraulic features include standard FWD for on-the-go extra traction and wheel slip, and an auxiliary implement hydraulic pump is available to add 9 gpm flow to the standard 13-gpm implement pump to efficiently run high-demand implements. Standard three-point hitch capacity can be increased from the standard 3,600 lbs. up to 5,400 lbs. with a single lift assist cylinder or up to 7,200 lbs. with two lift assist cylinders.

With genuine ease and comfort, TS6000 tractors make the work day more comfortable and productive for the operator with a new isolation mounted flat deck. The improved, flat-deck operator's platform is designed with excellent visibility from the padded, contoured seat and added comfort from ample legroom, easy-to-reach controls and easy shifting. The fuel tank holds a generous 39 gallons for long operation between fill-ups.
