Hesston H-160 TW


Hesston H-160 TW lawn tractor photo
1972 - 1976
Front Runner Series
Front-mount mower
Series map:
H-160 TW
H-200 TW
16.0hp
19.8hp
Production
ManufacturerHesston
Front-mount mower
Built in Indianapolis, Indiana, USA
Variants
GMTgrounds maintenance tractor
TWthree-wheeler
TTturf truck
Hesston H-160 TW Engine
16HP Briggs & Stratton 531cc 1-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Mechanical
Drive3x2 2WD
Mechanical disc brakes
Photos
No photos of the Hesston H-160 TW are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical disc
Dimensions & Tires
Wheelbase48 inches
121 cm
Weight830 lbs
376 kg
Front tire23x10.50-12
Rear tire20x8.00-10
Full dimensions and tires ...
Hesston H-160 TW attachments
48" front-mount mower deck
60" front-mount mower deck
80" front-mount mower deck
blade
Attachment details ...
Electrical
Charging systemgenerator
Charging amps15
Battery volts12
Battery AH45
References

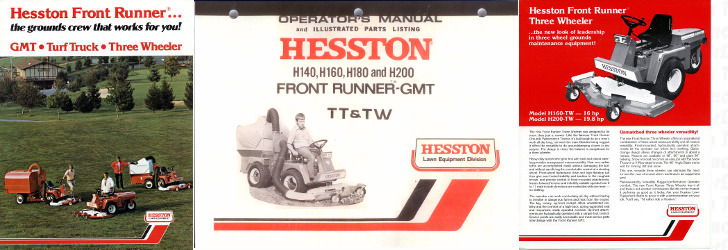

H-160 TW references literature
Operator's Manual Front Runner GMT-TT-TW (FR-1-1075) published in 1975
Operator's Manual Front Runner GMT-TT-TW (F-5523) published in 1971
Front Runner Three Wheeler published in 1975, by Hesston
