| | 2016 - |
| X500 Series | | Garden tractor |
|
Series map:
X580
X584
X590
24.0hp
24.0hp
25.5hp
| Engine Detail |
| Kawasaki FS730V |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 726 cc
44.3 ci
|
| Bore/Stroke | 3.07x2.99 inches
78 x 76 mm
|
| Power (gross) | 24 hp
17.9 kW
|
| Fuel system | carburetor
|
| Air cleaner | dry with foam precleaner
|
| Starter volts | 12
|

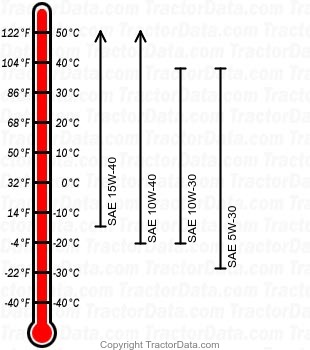

| Engine Oil |
|
| Oil capacity | 2.2 qts
2.1 L
|
| Oil change | 100 h
|
