John Deere X394 Engine


John Deere X394 lawn tractor photo
2016 - 2024
Model year
Select X300 Series
Lawn tractor
Series map:
X390
X394
22.0hp
22.0hp
Engine Detail
Kawasaki FS651V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement726 cc
44.3 ci
Bore/Stroke3.07x2.99 inches
78 x 76 mm
Power (gross)22 hp
16.4 kW
Fuel systemcarburetor
Air cleanerdry with foam precleaner
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

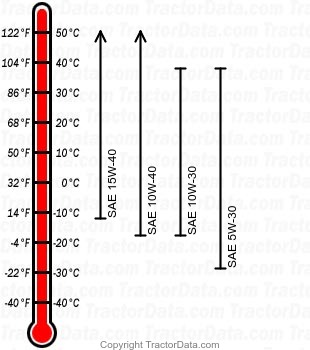

X394 gasoline engine oil chart
Oil capacity2.2 qts
2.1 L
Oil change100 h
