Craftsman 917.25763 Engine


Craftsman 917.25763 lawn tractor photo
1994
LT4000 Series
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 28M707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement465 cc
28.4 ci
Bore/Stroke3.44x3.06 inches
87 x 78 mm
Power (gross)13 hp
9.7 kW
Starterelectric
Starter volts12
SparkplugChampion RJ19LM
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
917.25763 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
Craftsman 917.25763 Engine

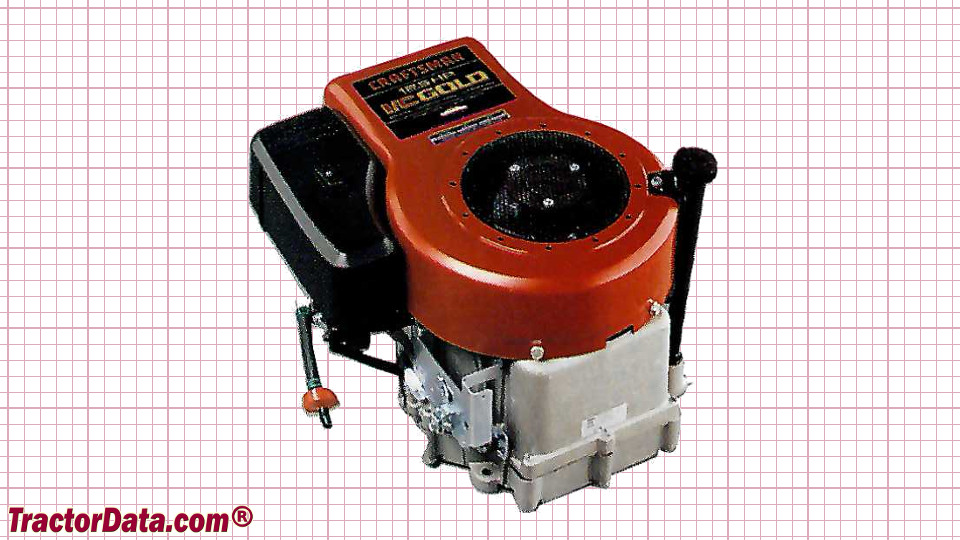

Craftsman 917.25763 engine image
