Lawn Tractors > Jacobsen > GT-12H 53275

Jacobsen GT-12H 53275

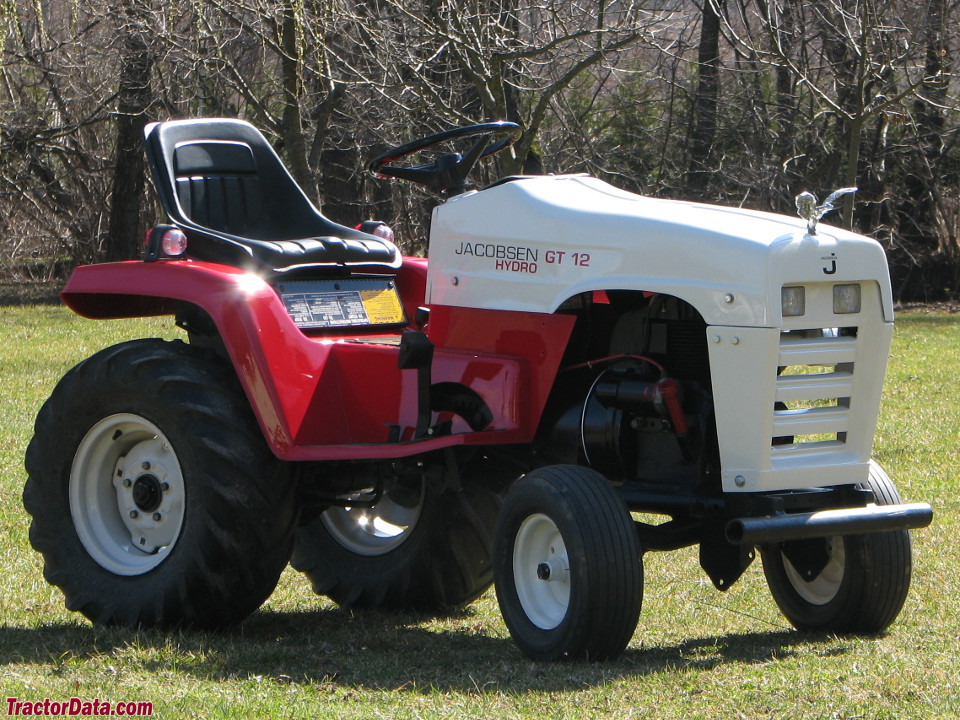

Jacobsen GT-12H 53275 lawn tractor photo
1972 - 1976   GT Series
Garden tractor
Next model:Jacobsen 1250
Series next:Jacobsen GT-14
Series back:Jacobsen GT-12






Production:

Manufacturer:Jacobsen


Variants:

GT-12:gear drive
GT-12H:hydrostatic


Jacobsen GT-12H Engine:

   12HP Kohler 476cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:2 gal [7.6 L]


Rear Hitch:

Type:sleeve hitch*Optional


3-Point Hitch:

Rear Type:0*Optional


Power Take-off (PTO):

Front PTO:independent
Clutch:electric


Dimensions & Tires:

Wheelbase:46 inches [116 cm]
Front tire:16x6.50-8
Rear tire:23x8.50-12
full dimensions and tires ...


Jacobsen GT-12H attachments:

 50" mid-mount mower deck
 snowblower
 blade
all GT-12H attachments ...


GT-12H Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical band
Cab:Open operator station. Vinyl weather cab optional.


Electrical:

Ground:negative
Charging amps:15


Battery:

Number:1
Volts:12
Amp-hours:24
