| | 1971 - 1974 |
| Riding lawn mower |
|
Series map:
56
57
6.0hp
7.0hp
| Transmissions overview |
| 2-speed gear |
| 3-speed gear |
| Transmission |
| Type | belt-driven gear
|
| Gears | 2 forward and 1 reverse
|
| Two-speed transmission used from 1971 through 1972, type code T2051. |

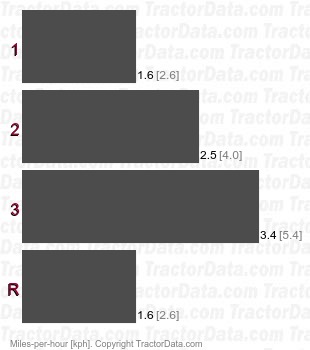

| Speeds |
|
| Transmission |
| Type | belt-driven gear
|
| Gears | 3 forward and 1 reverse
|
| Three-speed transmission introduced in 1973, type code T2052. |
| Speeds |
|

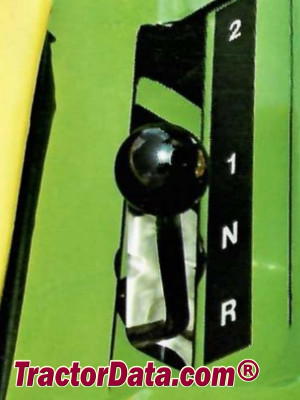

| Shift Pattern |
 |
