Simplicity Legacy 25 Engine


Simplicity Legacy 25 lawn tractor photo
1998 - 2003
Legacy Series
Garden tractor
Series map:
Legacy 24.5
Legacy 25
24.5hp
25.0hp
Engine Detail
Kohler CH740
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement726 cc
44.3 ci
Bore/Stroke3.27x2.64 inches
83 x 67 mm
Power (gross)25 hp
18.6 kW
Compression9:1
Starterelectric
Starter volts12
Oil capacity2.1 qts
2.0 L

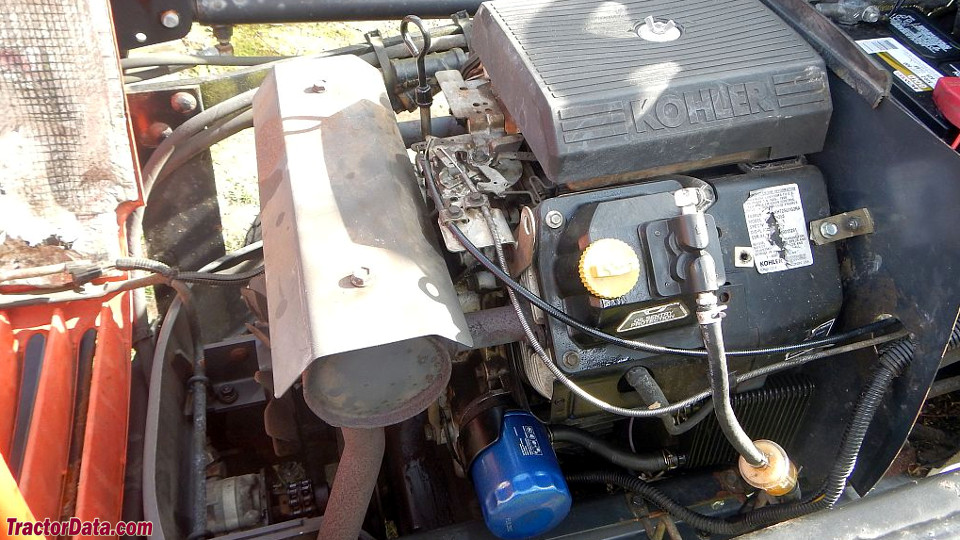

Simplicity Legacy 25 Engine
Simplicity Legacy 25 engine image
Image courtesy of Mark Salamack
