Lawn Tractors > Economy > Power King 14HP

Economy Power King 14HP

Economy Power King 14HP lawn tractor photo
1968 - 1977
Model years
Garden tractor






Production:

Manufacturer:Engineering Products Company
Factory:Waukesha, Wisconsin, USA


Economy Power King 14HP Engine:

   14HP Kohler 512cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:3 gal [11.4 L]


Rear Hitch:

Type:manual-lift rear hitch
 hydraulic-lift optional


Power Take-off (PTO):

Front PTO:continuous
Clutch:none


Dimensions & Tires:

Wheelbase:55 inches [139 cm]
Weight:820 to 911 pounds
full dimensions and tires ...


Economy Power King 14HP attachments:

 36" mid-mount mower deck
 48" mid-mount mower deck
 60" mid-mount mower deck
 snowblower
 blade
 front-end loader
all Power King 14HP attachments ...


Power King 14HP Serial Numbers:

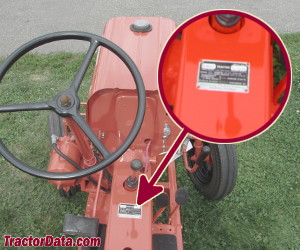

Location:Serial number plate by gear shifter.

- Serial numbers unknown -



Mechanical:

Transmission:3-speed gear
Transmission:9-speed gear
Chassis:4x2 2WD
Final drives:spur bull gears
Steering:manual
Brakes:mechanical band
Cab:Open operator station.


Hydraulics:

Type:open center (optional)
Pressure:1000 psi [69.0 bar]
Pump flow:1.8 gpm [6.8 lpm]
 7.5 gpm [28.4 lpm] (heavy duty)


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging amps:15


Battery:

Number:1
Volts:12
Amp-hours:45
