Lawn Tractors > Economy > Jim Dandy 14HP

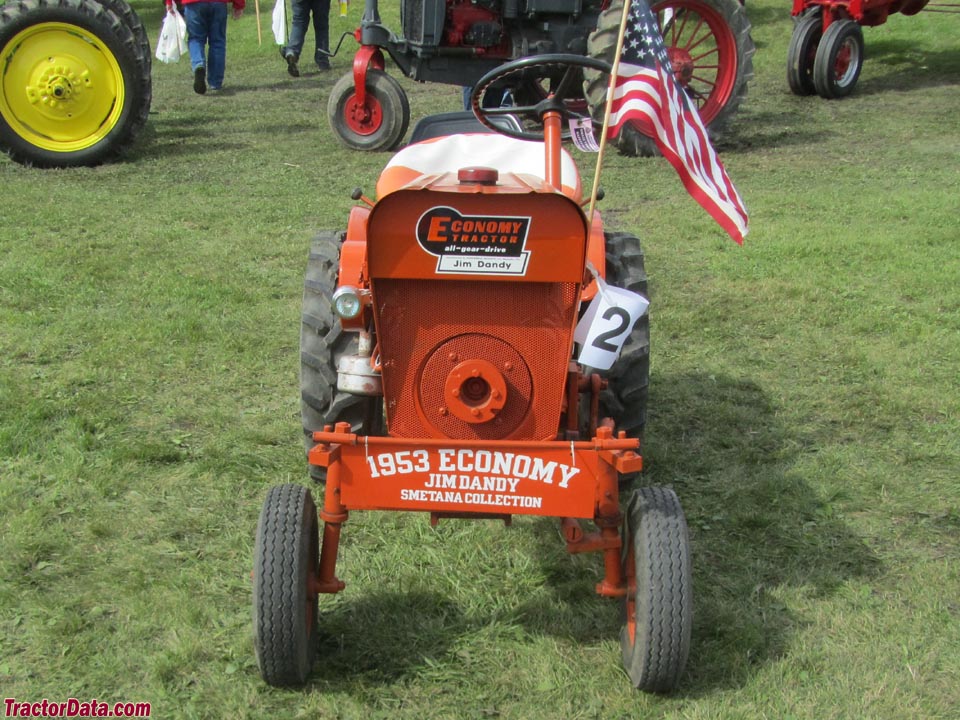

Economy Jim Dandy 14HP

Economy Jim Dandy 14HP lawn tractor photo
1968 - 1977
Model years
Garden tractor






Production:

Manufacturer:Engineering Products Company
Factory:Waukesha, Wisconsin, USA


Economy Jim Dandy 14HP Engine:

   14HP Kohler 512cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:3 gal [11.4 L]


Rear Hitch:

Type:manual-lift rear hitch
 hydraulic-lift optional


Power Take-off (PTO):

Front PTO:continuous
Clutch:none


Dimensions & Tires:

Wheelbase:52.5 inches [133 cm]
Weight:690 lbs [312 kg]
Front tire:6.50-8
Rear tire:8.00-16
full dimensions and tires ...


Economy Jim Dandy 14HP attachments:

 36" mid-mount mower deck
 48" mid-mount mower deck
 60" mid-mount mower deck
 snowblower
 blade
all Jim Dandy 14HP attachments ...


Jim Dandy 14HP Serial Numbers:

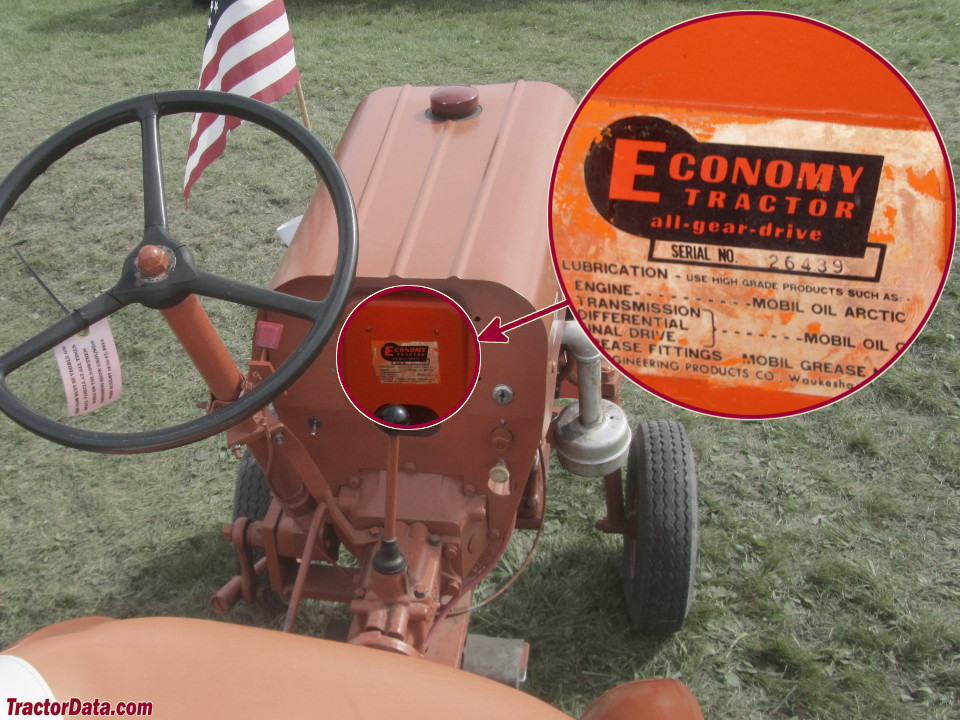

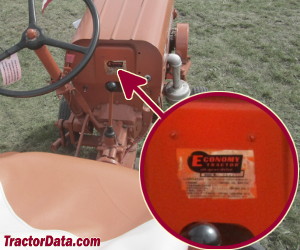

Location:Serial number plate on tractor dashboard.

- Serial numbers unknown -



Mechanical:

Transmission:3-speed gear
Transmission:9-speed gear
Chassis:4x2 2WD
Final drives:spur bull gears
Steering:manual
Brakes:mechanical band
Cab:Open operator station.


Hydraulics:

Type:open center (optional)
Pressure:1000 psi [69.0 bar]
Pump flow:1.8 gpm [6.8 lpm]


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging amps:15


Battery:

Number:1
Volts:12
Amp-hours:32
