Bolens 1000 Engine


Bolens 1000 lawn tractor photo
1965
Tube Frame Series
Garden tractor
Series map:
900
1000
8.3hp
10.0hp

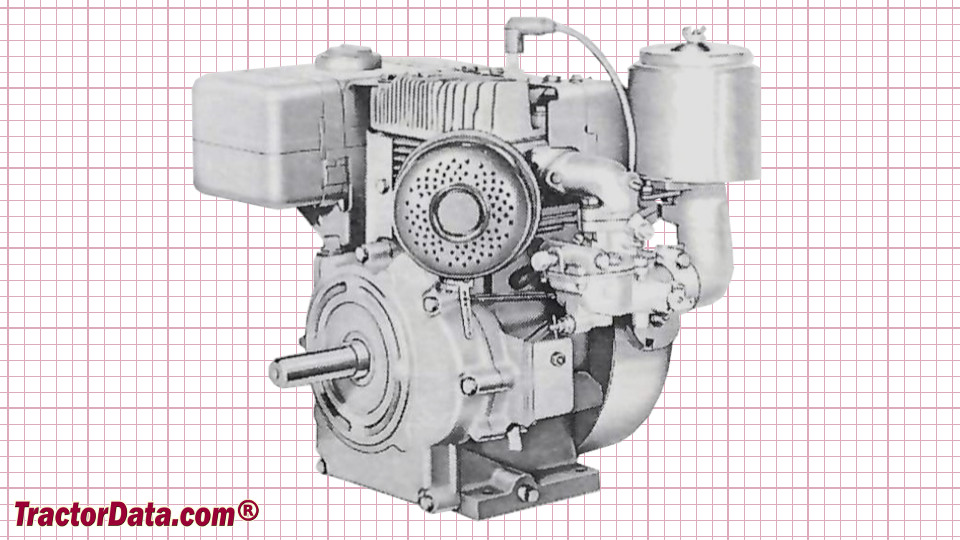

Engine Detail
Wisconsin TR-10D
gasoline
1-cylinder
air-cooled
Displacement331 cc
20.2 ci
Bore/Stroke3.125x2.625 inches
79 x 67 mm
Power10 hp
7.5 kW
Rated RPM3600
Starterelectric
Starter volts12
