Wheel Horse 270-H Engine


Wheel Horse 270-H lawn tractor photo
1996 - 2003
260 Series
Garden tractor
Series map:
268-H
270-H
18.0hp
20.0hp
Engine Detail
Kohler CV20S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Starterelectric
Starter volts12

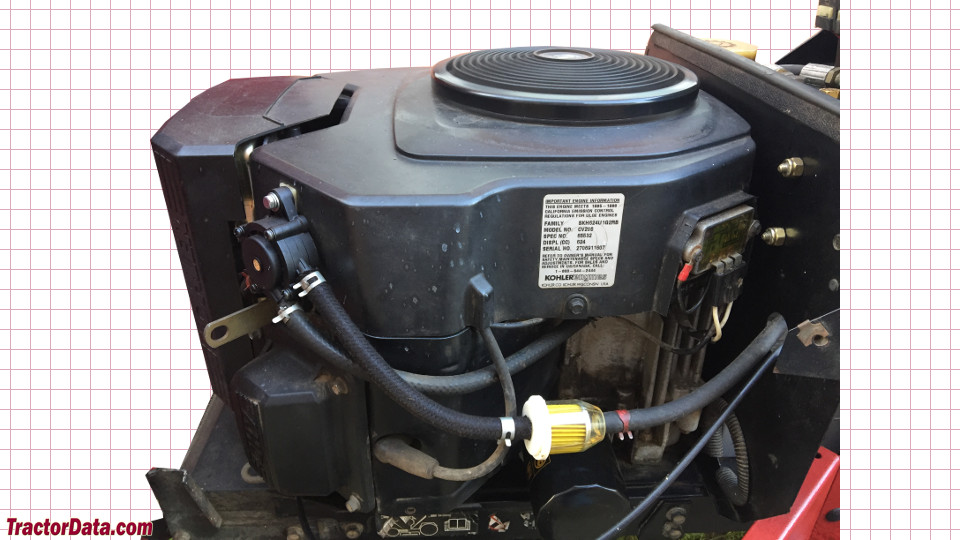

Wheel Horse 270-H Engine
Wheel Horse 270-H engine image
Image courtesy of Sorin Lungoci
