Massey Ferguson 2716H Engine


Massey Ferguson 2716H lawn tractor photo
2002 - 2004
2700 Series
Garden tractor
Simplicity built
Series map:
2716H
2718H
16.0hp
18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.
Engine Detail
Briggs & Stratton Vanguard
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)16 hp
11.9 kW
Air cleanerdual dry element
Starterelectric
Starter volts12
Oil capacity1.75 qts
1.7 L
Massey Ferguson 2716H Engine

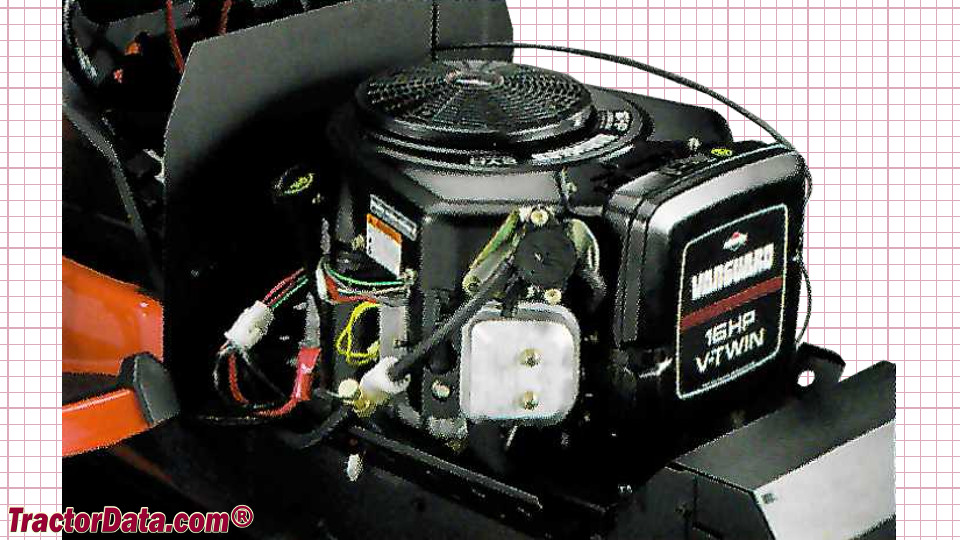

Massey Ferguson 2716H engine image
