| | 1995 - 2001 |
| 2600 Series | | Lawn tractor | | Simplicity built |
|
Series map:
2615H
2616H
16.0hp
16.0hp
| Engine Detail |
| Vanguard |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 480 cc
29.3 ci
|
| Bore/Stroke | 2.68x2.60 inches
68 x 66 mm
|
| Power (gross) | 16 hp
11.9 kW
|
| Rated RPM | 3400
|
| Starter | electric
|
| Starter volts | 12
|

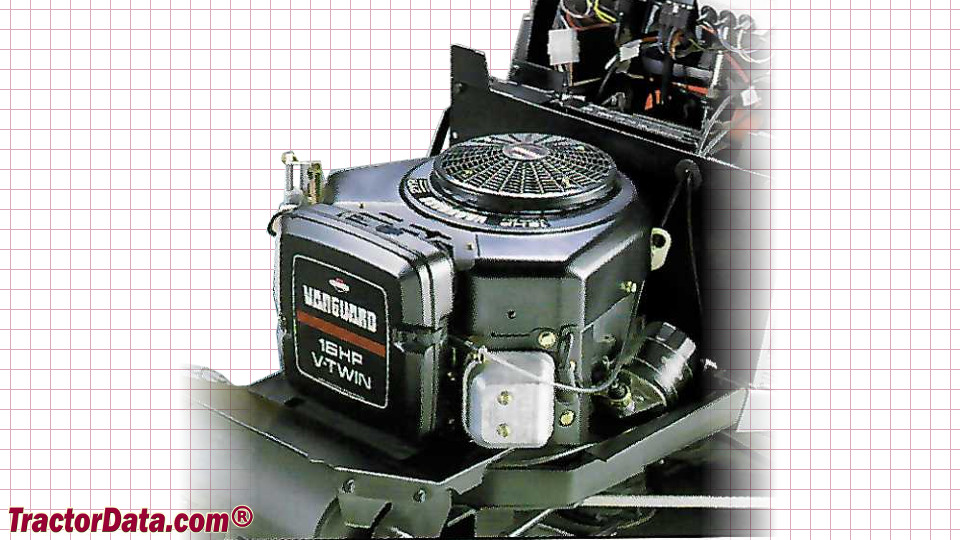

| Massey Ferguson 2616H Engine |
 |
