| | 1975 - 1979 |
| 7000 Series | | Garden tractor |
|
Series map:
7014
7016
7018
14.0hp
16.0hp
18.0hp
| Transmissions overview |
| hydrostatic |
| 6-speed gear |
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 3 qts
2.8 L
|

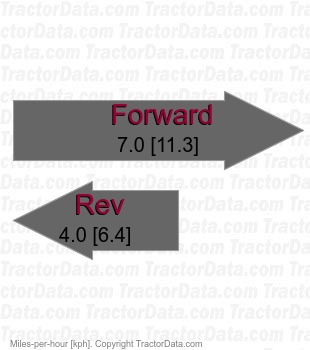

| Speeds |
|
| Transmission |
| Type | belt-driven gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | idler pulley
|
| Oil capacity | 2.25 qts
2.1 L
|
| Three gears, plus reverse, in two ranges. |

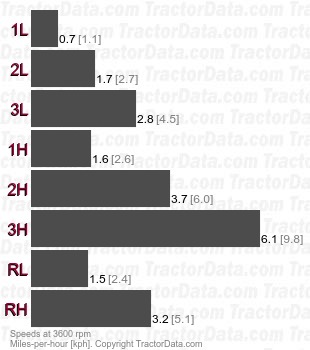

| Speeds |
|
