Bolens QS-16 1660 Engine


Bolens QS-16 1660 lawn tractor photo
1974 - 1977
Q Series
Garden tractor
Engine Detail
Kohler K341
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement588 cc
35.89 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power (gross)16 hp
11.9 kW
Air cleanerpaper element (Kohler 4708301)
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion H10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Engine Oil

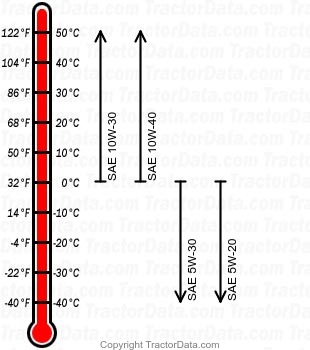

QS-16 1660 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
