Ford LS45 Transmission


Ford LS45 lawn tractor photo
1994 - 1995
LS Series
Garden tractor
Toro built
Series map:
LS35
LS45
LS55
15.0hp
16.0hp
18.0hp
Transmissions overview
hydrostatic
6-speed gear
Transmission
TransmissionTuff Torq K61
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.5 qts
3.3 L
Foot-pedal controlled hydrostatic transmission with optional cruise control.
Speeds
LS45 K61 belt-driven hydrostatic speeds
Transmission
TransmissionPeerless
Typegear
Gears6 forward and 1 reverse
Oil capacity3.5 qts
3.3 L
The gear-drive LS45 was produced from 1994 to 1996, only the hydrostatic was available after that time.
Speeds

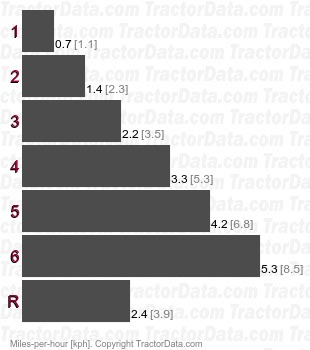

LS45  gear speeds
