Simplicity SunStar 18 Engine
|
|
| Engine options | |
| 18HP Kohler 691cc 2-cyl gasoline | |
| 18HP Vanguard 569cc 2-cyl gasoline |
| Engine Detail | |

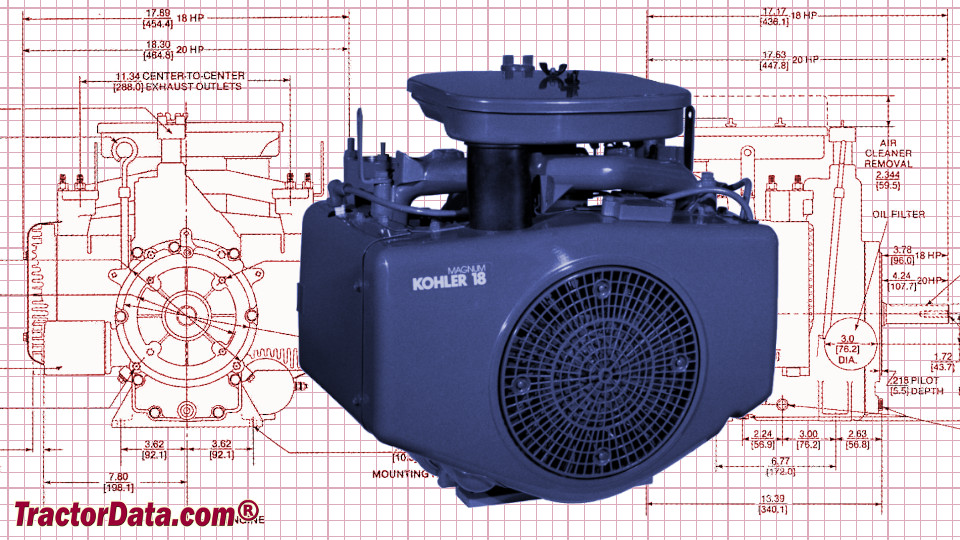

| Kohler M18 | |
| gasoline | |
| 2-cylinder | |
| air-cooled opposed-twin | |
| Full-pressure lubrication. The Kohler was used through the 1994 model year. | |
| Displacement | 691 cc 42.18 ci |
| Bore/Stroke | 3.125x2.75 inches 79 x 70 mm |
| Power (gross) | 18 hp 13.4 kW |
| Air cleaner | dual element |
| Compression | 6.0:1 |
| Rated RPM | 3400 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
| Sparkplug | Champion RV15YC |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Engine Detail | |
| Vanguard 350447 | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| The Briggs Vanguard was replaced the Kohler in 1995 and was used through the end of production. | |
| Displacement | 569 cc 34.75 ci |
| Bore/Stroke | 2.83x2.75 inches 72 x 70 mm |
| Power (gross) | 18 hp 13.4 kW |
| Air cleaner | dual element |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.75 qts 1.7 L |
