Simplicity 4041 PowrMax Transmission


Simplicity 4041 PowrMax lawn tractor photo
1973 - 1974
PowrMax Series
Garden tractor
Series map:
4041
19.5hp
Transmission
TransmissionSundstrand
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity5 qts
4.7 L
Three-speed gear shift with hydrostatic transmissions. Hydrostatic must be in neutral to shift, although use of the foot clutch is not required or recommended.

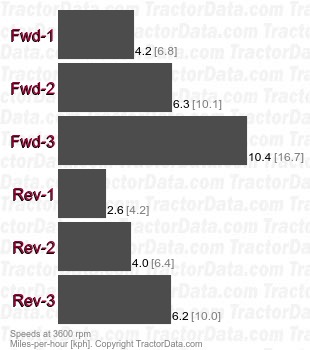

Speeds
4041 PowrMax  hydrostatic speeds

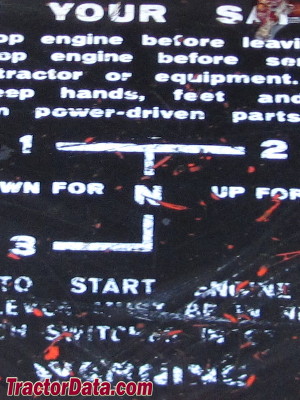

Shift Pattern
Simplicity 4041 transmission controls

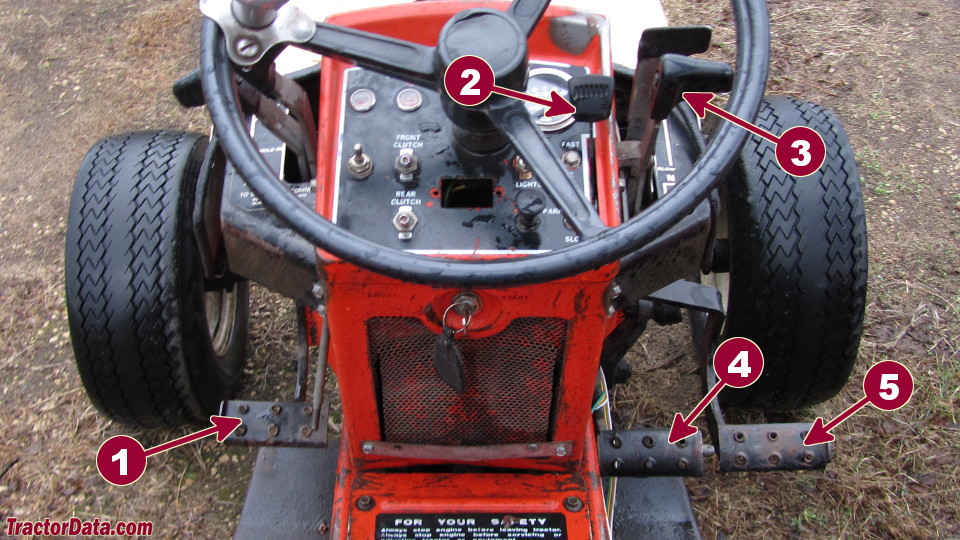

4041 Transmission Controls
Simplicity 4041 transmission controls
1Clutch
2Throttle
3Forward/reverse
4Left brake
5Right brake
