Allis Chalmers 608 LTD Transmission


Allis Chalmers 608 LTD lawn tractor photo
1980 - 1985
600 Lawn Series
Lawn tractor
Series map:
608 LTD
611 LTD
8.0hp
11.0hp
Transmission
ManufacturerPeerless
Typebelt-driven gear
Gears5 forward and 1 reverse
Speeds

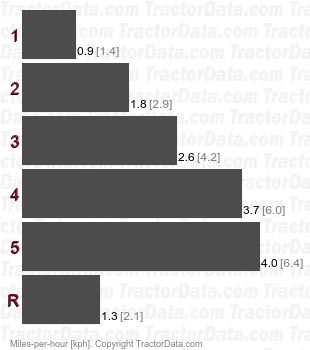

608 LTD  belt-driven gear speeds
Shift Pattern

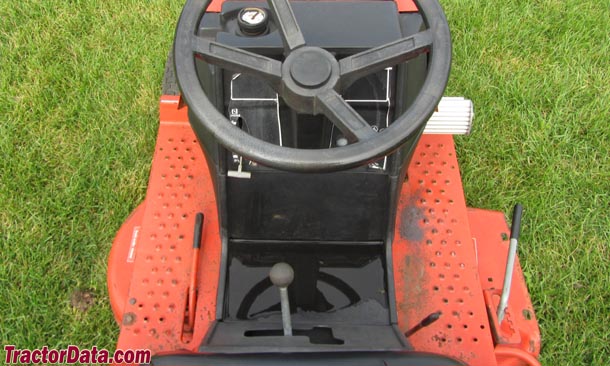

Allis Chalmers 608 LTD transmission controls
608 LTD Transmission Controls
Allis Chalmers 608 LTD transmission controls
1Throttle
2Clutch/brake
3Gear shift
