Lawn Tractors > Bolens > 1455

Bolens 1455 Engine



Bolens 1455 lawn tractor photo
1969
Large Frame Series
Garden tractor
Series map:
1250
1455
12.5hp
14.0hp
Engine Detail
Wisconsin S14D
gasoline
1-cylinder
air-cooled
Displacement542 cc
33.1 ci
Bore/Stroke3.75x3.00 inches
95 x 76 mm
Power14 hp
10.4 kW
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.007 inches (cold)
0.178 mm
Exhaust valve clearance0.016 inches (cold)
0.406 mm
Engine Oil

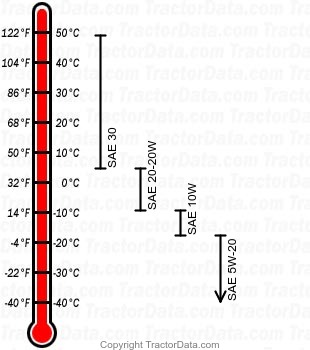

1455 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
