Cub Cadet 2518 Engine


Cub Cadet 2518 lawn tractor photo
2002 - 2003
2500 Series
Garden tractor
Series map:
2206
2518
20.0hp
20.0hp
Engine Detail
Kohler CH18S
gasoline
2-cylinder
air-cooled horizontal-shaft V-twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Rated RPM3350
Idle RPM1400-3600
Torque32.2 lb-ft
43.7 Nm
Torque RPM2200
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

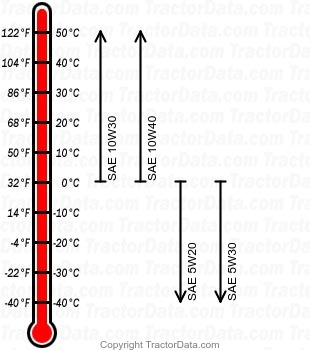

2518 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
