John Deere X145 Engine


John Deere X145 lawn tractor photo
2011 - 2014
X100 Series
Lawn tractor
Series map:
X125
X145
X165
10.0kw
10.3kw
13.3kw
Engine Detail
Briggs & Stratton 31
gasoline
1-cylinder
air-cooled
Displacement501 cc
30.6 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power (gross)13.8 hp
10.3 kW
Air cleanerpaper and foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.006 inches
0.152 mm
Engine Oil

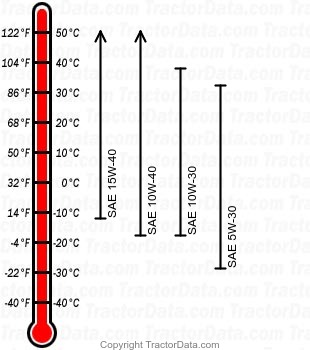

X145 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
