John Deere X360


John Deere X360 lawn tractor photo
2008 - 2015
Model year
Select X300 Series
Lawn tractor
Series map:
X324
X360
22.0hp
22.0hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Variants
X320manual two-wheel steer
X324manual four-wheel steer
X360power two-wheel steer
John Deere X360 Engine
22HP Kawasaki 726cc 2-cyl gasoline
Fuel tank3.3 gal
12.5 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Weight548 lbs
248 kg
Front tire15x6.50-8
Rear tire22x11.00-10
Full dimensions and tires ...
John Deere X360 attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...

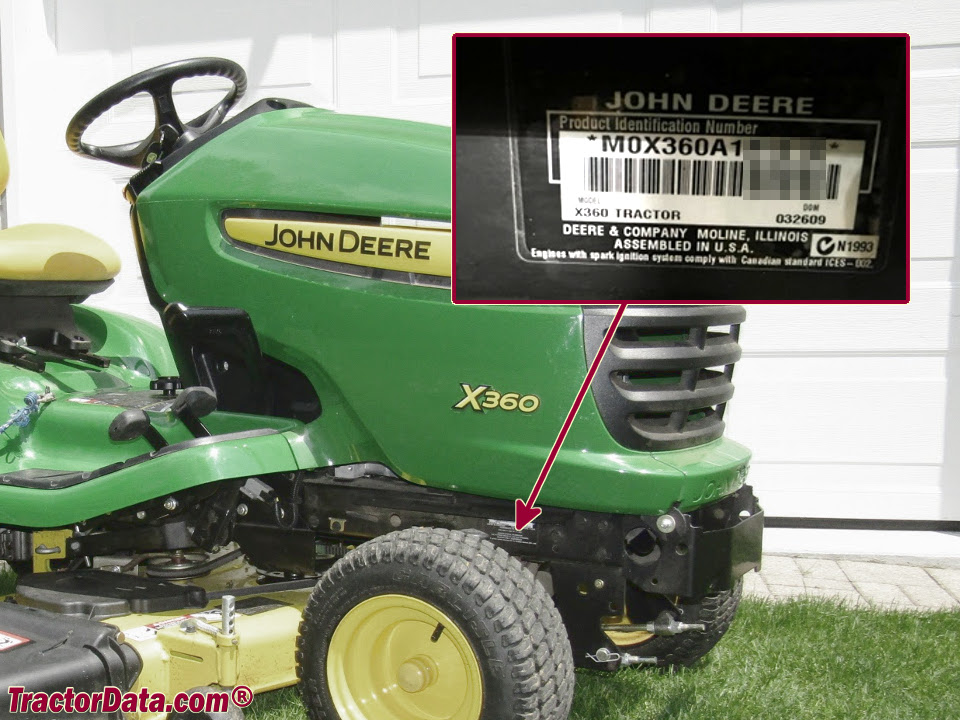

X360 Serial Number Location
John Deere X360 serial number location
Serial number decal on the right side of the tractor frame, above the front axle.
X360 Serial Numbers
2008085001
2009120001
2010150001
2011180001
2012220001
2014280001
2015310001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging amps15
Battery CCA195
Battery volts12
References
X360 references literature
Riding Lawn Tractors published in 2015, by John Deere
Select Series Tractors published in 2012, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere
X360 manuals literature
Operator's Manual X300 Tractors (OMM163031) published in 2010
Operator's Manual X300 Tractors (OMM164717) published in 2012
Operator's Manual X300 Tractors (OMM167789) published in 2012
Operator's Manual X300 Tractors (OMM173266) published in 2014
