| | 1979 - 1980 |
| 8000 Series | | Garden tractor |
|
Series map:
8163
8183
16.0hp
18.0hp
| Engine Detail |
| Onan B48M |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft opposed-twin |
| Displacement | 781 cc
47.7 ci
|
| Bore/Stroke | 3.25x2.875 inches
83 x 73 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 2 qts
1.9 L
|

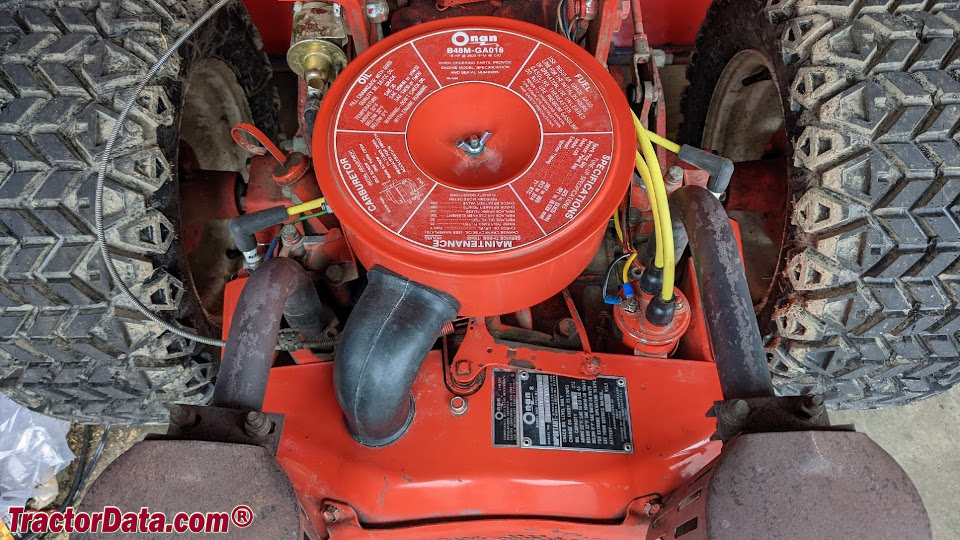

| Gravely 8183 Engine |
 |
| Image courtesy of Jacob Newkirk |
