John Deere 116H Engine


John Deere 116H lawn tractor photo
1983 - 1985
100 Lawn Series
Lawn tractor
Series map:
116
116H
16.0hp
16.0hp
Engine Detail
Briggs & Stratton 402707
gasoline
2-cylinder
air-cooled vertical-shaft
Displacement655 cc
40 ci
Bore/Stroke3.44x2.16 inches
87 x 55 mm
Power16 hp
11.9 kW
Starterelectric
Starter volts12
SparkplugAC R046
 Champion RJ-12
 Autolite 308
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

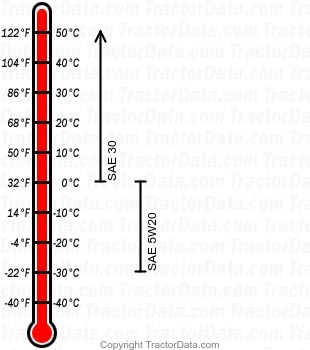

116H gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
