| | 1984 - 1985 |
| 100XC Series | | Lawn tractor | | Ingersoll built |
|
Series map:
110 XC
116 XC
10.0hp
16.0hp
| Engine Detail |
| Briggs & Stratton 402707 |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft horizontally-opposed |
| Displacement | 655 cc
40 ci
|
| Bore/Stroke | 3.43x2.0625 inches
87 x 52 mm
|
| Power | 16 hp
11.9 kW
|
| Starter | electric
|
| Starter volts | 12
|

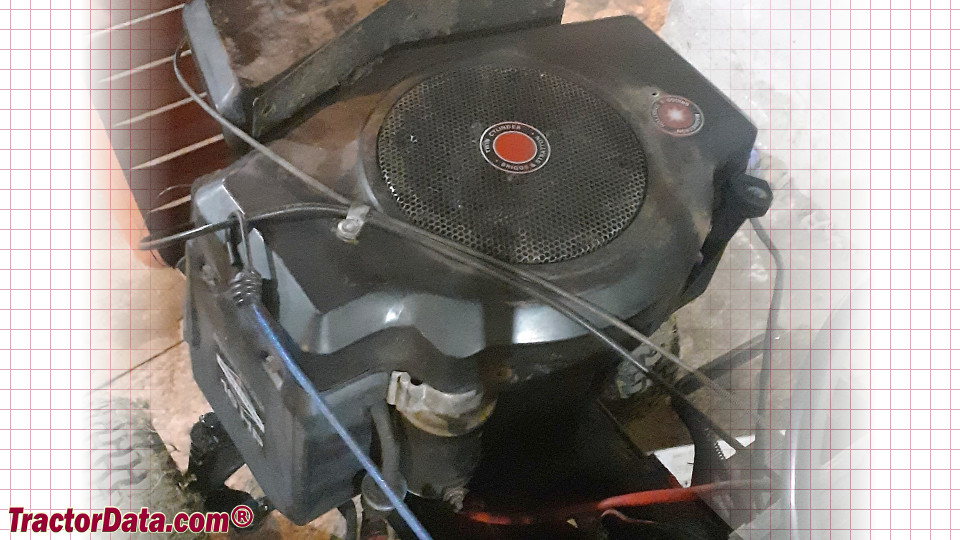

| J.I. Case 116 XC Engine |
 |
| Image courtesy of Henry Peet |
