| | 1999 - 2001 |
| Lawn tractor | | John Deere built |
|
Series map:
S1742
S2046
17.0hp
20.0hp
| Engine Detail |
| Briggs & Stratton |
| gasoline |
| 2-cylinder |
| air-cooled |
| Displacement | 655 cc
40.0 ci
|
| Power | 20 hp
14.9 kW
|
| Air cleaner | foam
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

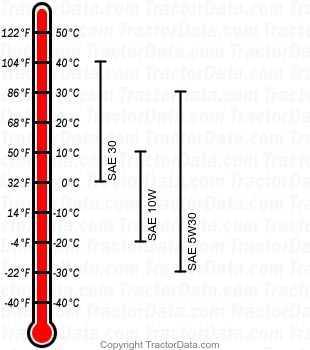

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Scotts S2046 Engine |
 |
| Image courtesy of Douglas Wardenski |
