Honda H2013 Engine


Honda H2013 lawn tractor photo
1995 - 1998
Lawn tractor
Engine Detail
Honda GXV390
gasoline
1-cylinder
air-cooled
Displacement388 cc
23.7 ci
Bore/Stroke3.46x2.51 inches
88 x 64 mm
Power13 hp
9.7 kW
Rated RPM3600
Torque20.3 lb-ft
27.5 Nm
Torque RPM2500
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

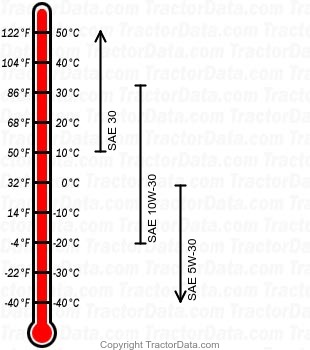

H2013 gasoline engine oil chart
Oil capacity1.16 qts
1.1 L
