John Deere LA105 Engine


John Deere LA105 lawn tractor photo
2008 - 2010
LA105 Series
Lawn tractor
Series map:
LA105
LA115
19.5hp
19.5hp
Engine Detail
Briggs & Stratton 31
gasoline
1-cylinder
air-cooled
Displacement499 cc
30.5 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power (gross)19.5 hp
14.5 kW
Air cleanerpaper and foam elements
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.006 inches
0.152 mm
Engine Oil

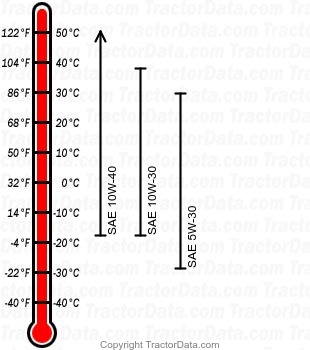

LA105 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
