| | 1991 - 1993 |
| 240 Series | | Lawn tractor |
|
Series map:
244-H
246-H
14.0hp
16.0hp
| Engine Detail |
| Onan E140V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 388 cc
23.7 ci
|
| Bore/Stroke | 3.31x2.76 inches
84 x 70 mm
|
| Power (gross) | 14 hp
10.4 kW
|
| Rated RPM | 3600
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

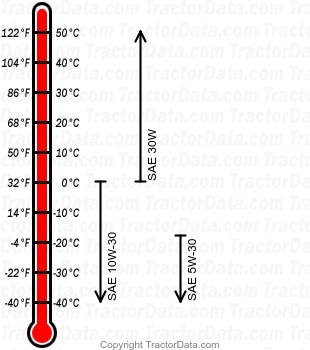

| Engine Oil |
|
| Oil capacity | 1.75 qts
1.7 L
|
| Oil change | 50 h
|
| Wheel Horse 244-H Engine |
 |
