Lawn Tractors > Cub Cadet > 1512

Cub Cadet 1512 Engine



Cub Cadet 1512 lawn tractor photo
1985 - 1987
Garden tractor
Series map:
1512
15.0hp
Engine Detail
Kubota D600-B
diesel
3-cylinder
liquid-cooled horizontal-shaft inline
Displacement606 cc
37 ci
Bore/Stroke2.52x2.45 inches
64 x 62 mm
Power (gross)15 hp
11.2 kW
Pre-heatingglow plugs
Starterelectric
Starter volts12
Coolant capacity3 qts
2.8 L
Engine Oil

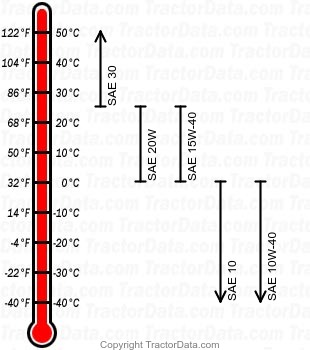

1512 diesel engine oil chart
Oil capacity3.1 qts
2.9 L
Oil change100 h

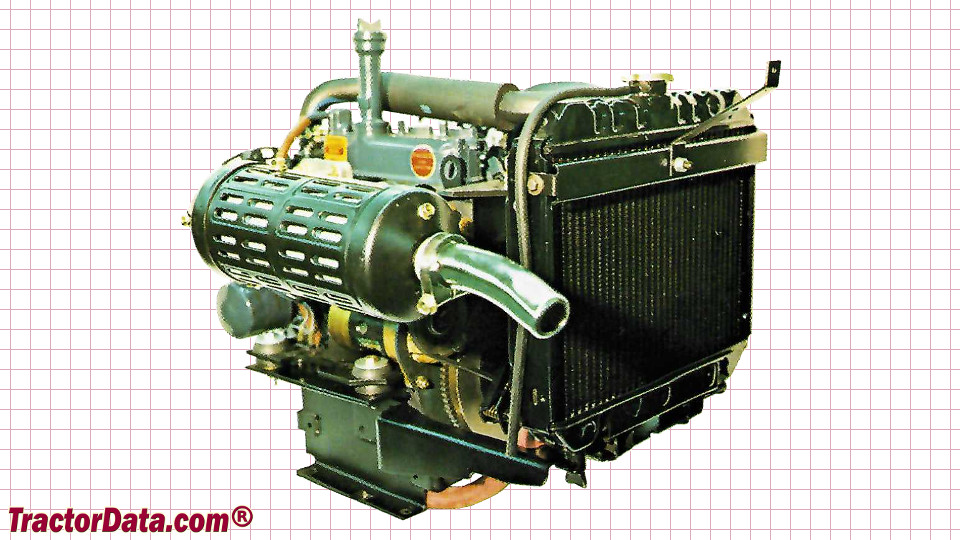

Cub Cadet 1512 Engine
Cub Cadet 1512 engine image
