Toro Wheel Horse XL380 Engine


Toro Wheel Horse XL380 lawn tractor photo
2005 - 2010
XL Series
Lawn tractor
Series map:
XL320
XL380
XL440
13.0hp
16.0hp
17.0hp
Engines overview
16HP Briggs & Stratton 465cc 1-cyl gasoline
16HP Briggs & Stratton 502cc 1-cyl gasoline
Engine Detail
Briggs & Stratton 286H77
gasoline
1-cylinder
air-cooled
The 286H77 was used on the XL 380 through the 2007 model year.
Displacement465 cc
28.38 ci
Power (gross)16 hp
11.9 kW
Air cleanerpaper and foam elements
Starter volts12
SparkplugChampion QC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

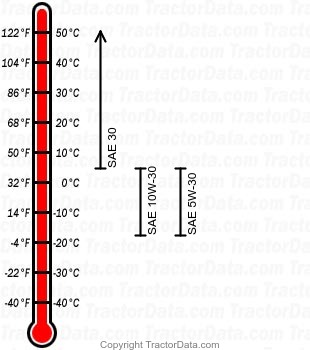

Wheel Horse XL380 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Engine Detail
Briggs & Stratton 31E777
gasoline
1-cylinder
air-cooled
The 31E777 was used on the XL 380 starting with the 2008 model year.
Displacement502 cc
30.63 ci
Bore/Stroke3.56x3.062 inches
90 x 78 mm
Power (gross)16 hp
11.9 kW
Air cleanerpaper and foam elements
Starter volts12
SparkplugChampion QC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
Wheel Horse XL380 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Oil change50 h
