| | 1974 - 1980 |
| Quietline Series | | Garden tractor |
|
Series map:
1100
1200
1250
11.0hp
12.0hp
12.0hp
| Transmissions overview |
| 3-speed gear |
| 6-speed creeper |
| Transmission |
| Type | shaft-driven gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 4 qts
3.8 L
|
| Tractor must be stopped, and clutch used, to shift gears. |
| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 4.25 qts
4.0 L
|
| Adds a creeper range to the basic transmission. Creeper engaged by separate control lever. |

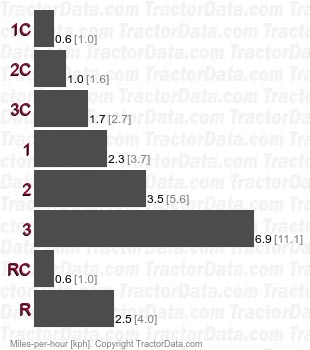

| Speeds |
|
